SH0002 pressure switch (micro pressure)/pressure controller

OverviewThe
SH0002 pressure switch (micro pressure)/pressure controller uses a diaphragm sensor for neutral gases such as air and liquid media such as water, hydraulic oil, lubricating oil, light fuel oil, etc. The setting value of SH0002 pressure switch (micro pressure)/pressure controller is adjustable, and the adjustment range is 0~2.5MPa. High control sensitivity.

Main technical performance

	Ordinary type	Explosion-proof type
Working viscosity	< 1×10-3m2/s	< 1×10-3m2/s
Switching elements	Microswitches	Sealed switches
Explosion-proof rating		Exde Ⅱ CT4～T6
Enclosure rating	IP65 (DIN40050 compliant, comparable to IP65 in GB4208)	IP65 (DIN40050 compliant, comparable to IP65 in GB4208)
Ambient temperature	－20℃～50℃	－20℃～50℃
Medium temperature	0～90℃	0～120℃
Installation location		The pressure connection is vertically downward
Vibration resistance	0002：40m/s2 ; 0003：20m/s2	Max：20m/s2
Repeatability error	≤1.5%	≤1.5%
Contact capacity	AC 220V 6A (resistive)	DC 250V 0.25A (resistive) 60Wmax AC 250V 5A (resistive) 1250VAmax

Specification

The micro-pressure switching difference is not adjustable

The setpoint adjustment range is KPa	The handover difference is greater than KPa	*Large allowable pressure (1) KPa	The number of switches is switched at times/minute	Pressure sensor material		Interface internal thread	Weight kg	Dimensions drawing number		Order catalogue number
				enclosure	diaphragm			Ordinary type	Explosion-proof type	Ordinary type	Explosion-proof type
－16～0	0.6	50	10	Galvanized steel	nitrile rubber	G1/4	1.0	01	04	0002.10-002265	0002.50-002265
－10～0	0.6	50	10	Galvanized steel	nitrile rubber	G1/4	1.0	01	04	0002.10-003265	0002.50-003265
－6～0	0.6	50	10	Galvanized steel	nitrile rubber	G1/4	1.0	01	04	0002.10-006265	0002.50-006265
－2.5～0	0.4	50	10	Galvanized steel	nitrile rubber	G1/4	1.0	01	04	0002.10-008265	0002.50-008265
－1.6～0	0.4	50	10	Galvanized steel	nitrile rubber	G1/4	1.0	01	04	0002.10-011265	0002.50-011265
0～0.6	0.2	50	10	Galvanized steel	nitrile rubber	G1/4	1.0	01	04	0002.10-013265	0002.50-013265
0～1.1	0.4	50	10	Galvanized steel	nitrile rubber	G1/4	1.0	01	04	0002.10-015265	0002.50-015265
0～1.6	0.4	50	10	Galvanized steel	nitrile rubber	G1/4	1.0	01	04	0002.10-016265	0002.50-016265

The switching difference is not adjustable

Set point adjustment range	The switching difference is not greater than	*High allowable pressure (1)	The number of	Pressure sensor material		Interface internal thread	Weight kg	Dimensions drawing number		Order catalogue number
MPa (KPa)	MPa (KPa)	MPa (KPa)	switches is switched at times/minute	enclosure	diaphragm	Interface internal thread	Weight kg	Ordinary type	Explosion-proof type	Ordinary type	Explosion-proof type
(0～2.5)	-0.4	-50	10	aluminium	nitrile rubber	G1/4	1	1	4	0002.10-018265	0002.50-018265
(0～6)	-0.6	-50	10	aluminium	nitrile rubber	G1/4	1	1	4	0002.10-021265	0002.50-021265
(0～16)	-0.8	-50	10	aluminium	nitrile rubber	G1/4	1	1	4	0002.10-023265	0002.50-023265
(0～25)	-0.9	-50	10	aluminium	nitrile rubber	G1/4	1	1	4	0002.10-024265	0002.50-024265
0.005～0.06	0.006	1.5	40	brass	nitrile rubber	G1/4	1.15	2	5	0002.10-138066	0002.50-138066
0.005～0.1	0.009	1.5	40	brass	nitrile rubber	G1/4	1.15	2	5	0002.10-140066	0002.50-140066
0.005～0.16	0.012	1.5	40	brass	nitrile rubber	G1/4	1.15	2	5	0002.10-139066	0002.50-139066
0.005～0.25	0.015	1.5	40	brass	nitrile rubber	G1/4	1.15	2	5	0002.10-141066	0002.50-141066
0.03～0.4	0.04	4	40	brass	nitrile rubber	G1/4	0.85	3	6	0002.10-155066	0002.50-155066
0.03～0.6	0.05	4	40	brass	nitrile rubber	G1/4	0.85	3	6	0002.10-156066	0002.50-156066
0.05～1	0.06	4	40	brass	nitrile rubber	G1/4	0.85	3	6	0002.10-166066	0002.50-166066
0.1～1.6	0.12	5	40	brass	nitrile rubber	G1/4	0.85	3	6	0002.10-176066	0002.50-176066
0.1～2.5	0.15	5	40	brass	nitrile rubber	G1/4	0.85	3	6	0002.10-178066	0002.50-178066

The switching difference is adjustable

Set point adjustment range	The switching difference is not greater than	*High allowable pressure (1)	The number of	Pressure sensor material		Interface internal thread	Weight kg	Dimensions drawing number		Order catalogue number
MPa (KPa)	MPa (KPa)	MPa (KPa)	switches is switched at times/minute	enclosure	diaphragm	Interface internal thread	Weight kg	Ordinary type	Explosion-proof type	Ordinary type	Explosion-proof type
(0～2.5)	-1.1	-50	10	aluminium	nitrile rubber	G1/4	1.05	1	4	0002.00-018265	0002.40-018265
(0～6)	-1.5	-50	10	aluminium	nitrile rubber	G1/4	1.05	1	4	0002.00-021265	0002.40-021265
(0～16)	-2.3	-50	10	aluminium	nitrile rubber	G1/4	1.05	1	4	0002.00-023265	0002.40-023265
(0～25)	-2.8	-50	10	aluminium	nitrile rubber	G1/4	1.05	1	4	0002.00-024265	0002.40-024265
0.005～0.06	0.016	1.5	40	brass	nitrile rubber	G1/4	1.2	2	5	0002.00-138066	0002.40-138066
0.005～0.1	0.018	1.5	40	brass	nitrile rubber	G1/4	1.2	2	5	0002.00-140066	0002.40-140066
0.005～0.16	0.025	1.5	40	brass	nitrile rubber	G1/4	1.2	2	5	0002.00-139066	0002.40-139066
0.005～0.25	0.025	1.5	40	brass	nitrile rubber	G1/4	1.2	2	5	0002.00-141066	0002.40-141066
0.03～0.4	0.08	4	40	brass	nitrile rubber	G1/4	0.9	3	6	0002.00-155066	0002.40-155066
0.03～0.6	0.1	4	40	brass	nitrile rubber	G1/4	0.9	3	6	0002.00-156066	0002.40-156066
0.05～1	0.11	4	40	brass	nitrile rubber	G1/4	0.9	3	6	0002.00-166066	0002.40-166066
0.1～1.6	0.25	5	40	brass	nitrile rubber	G1/4	0.9	3	6	0002.00-176066	0002.40-176066
0.1～2.5	0.33	5	40	brass	nitrile rubber	G1/4	0.9	3	6	0002.00-178066	0002.40-178066

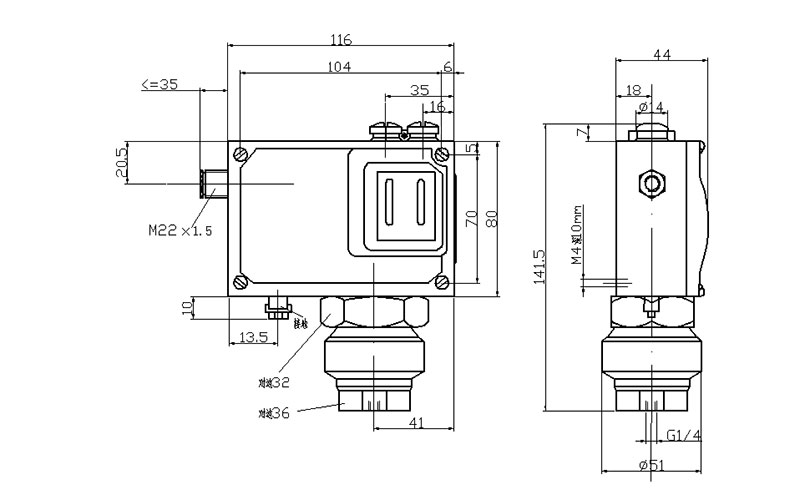

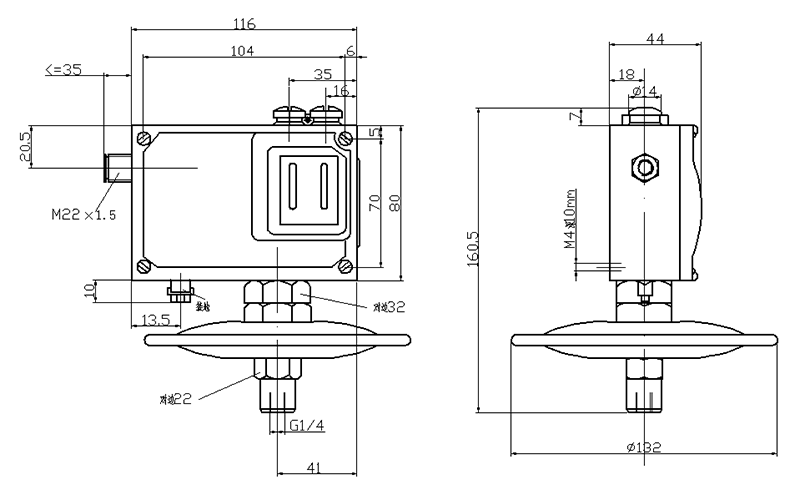

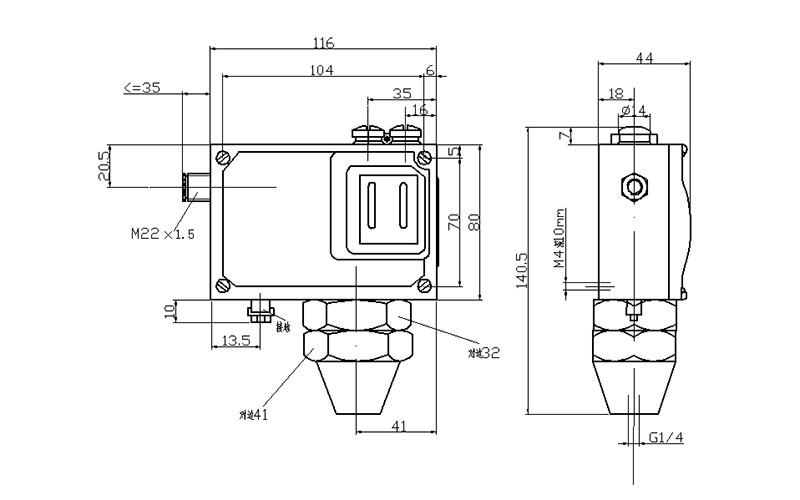

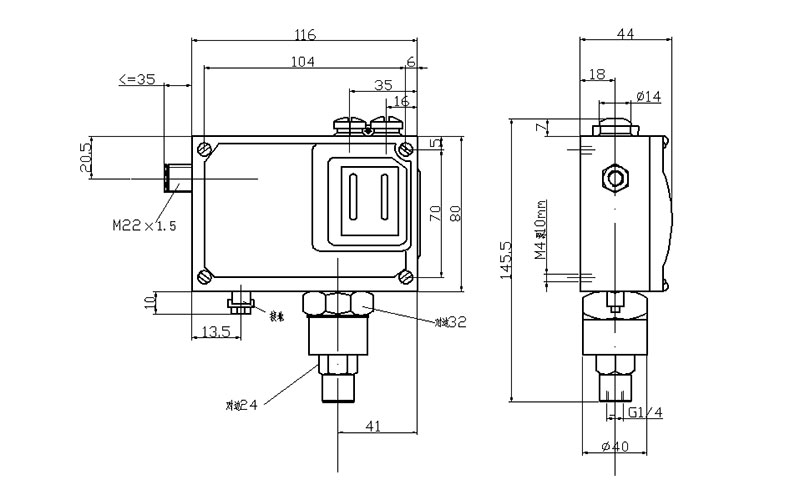

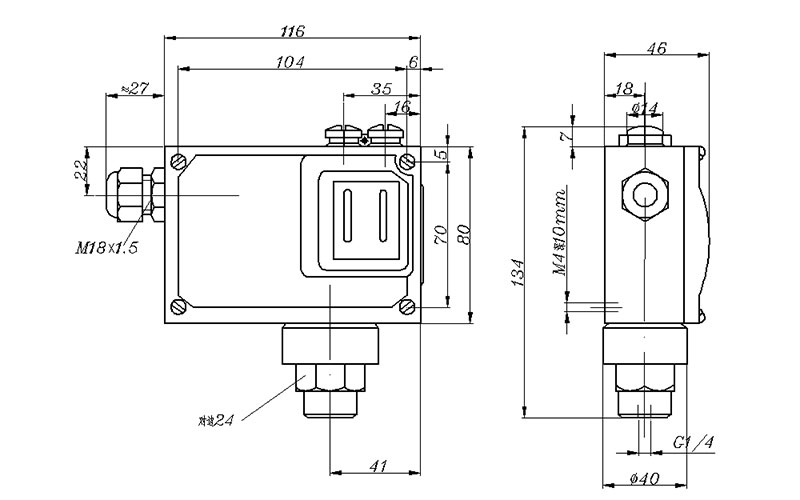

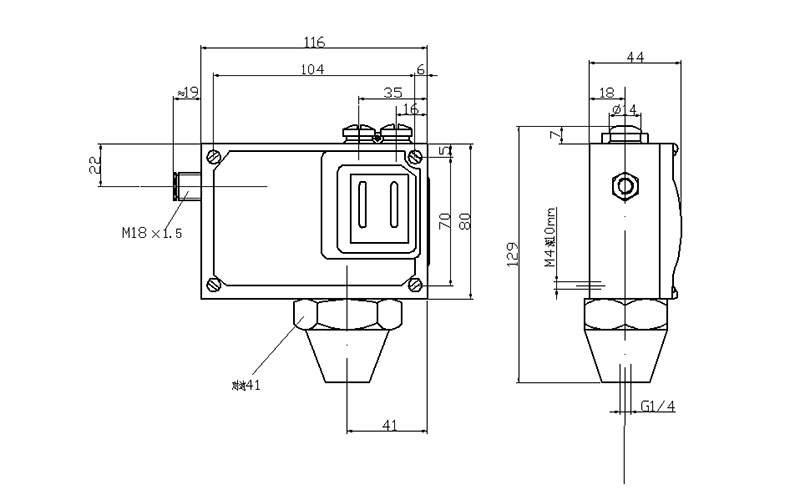

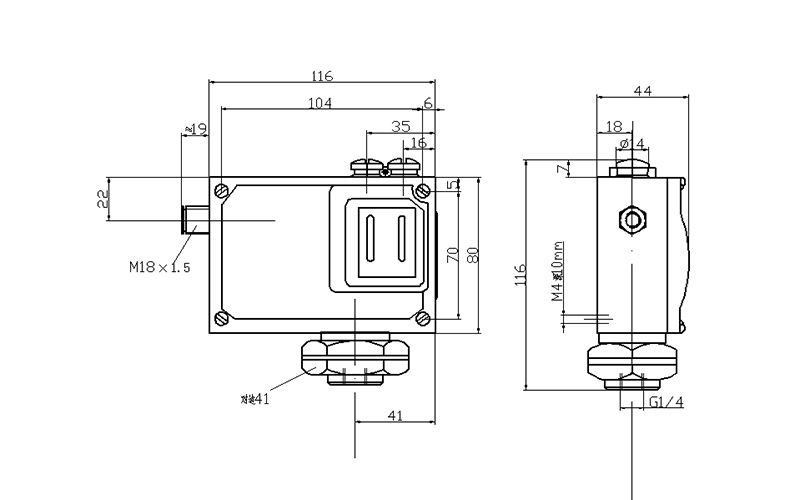

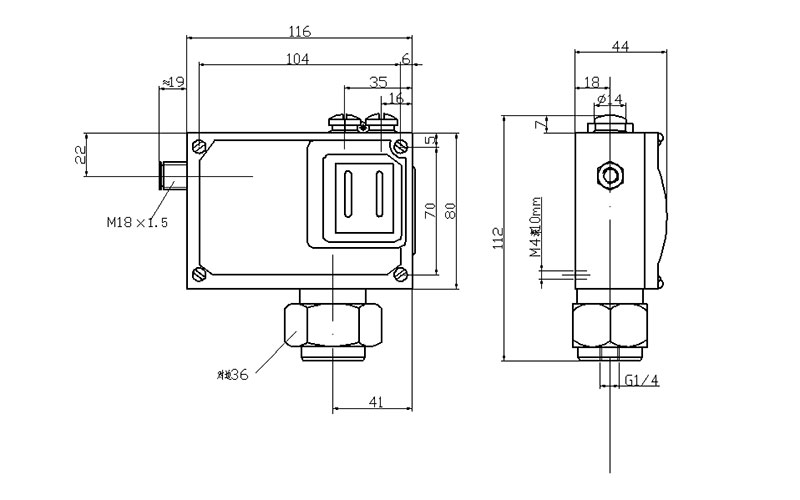

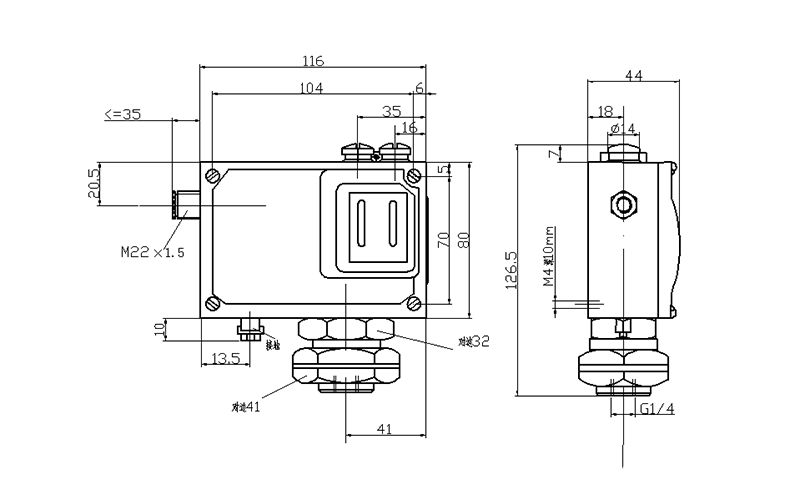

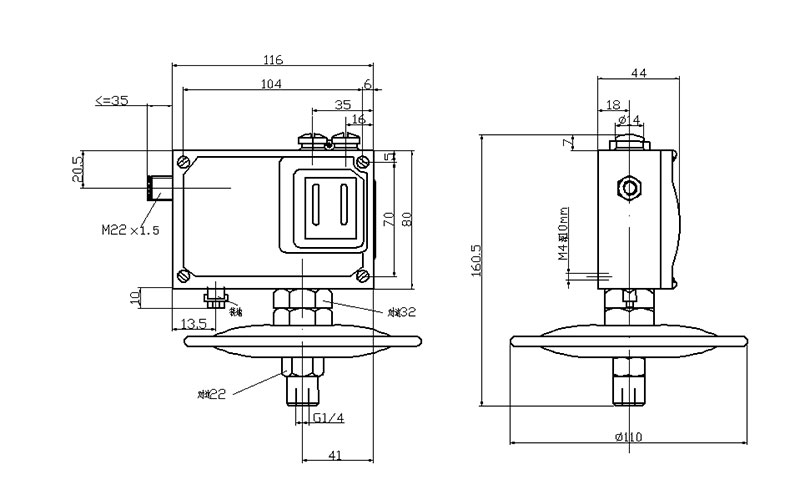

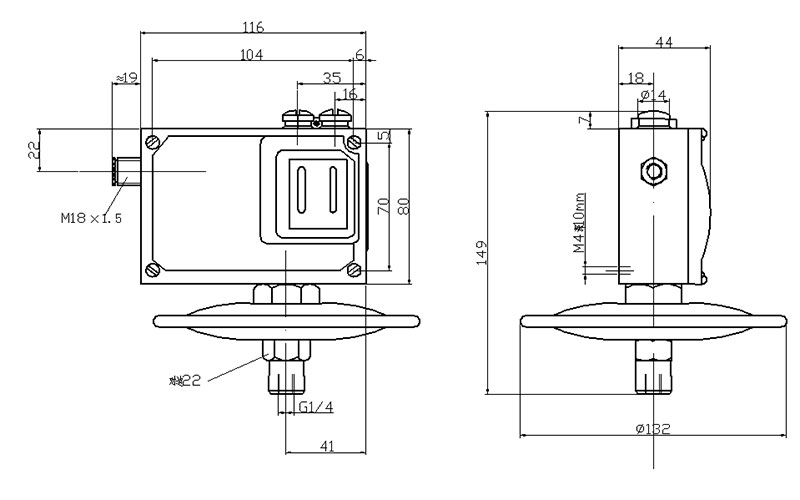

Dimensional drawings

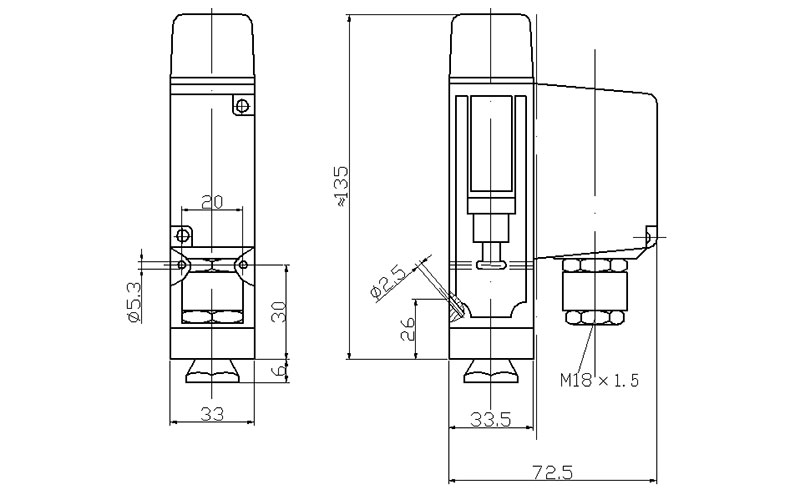

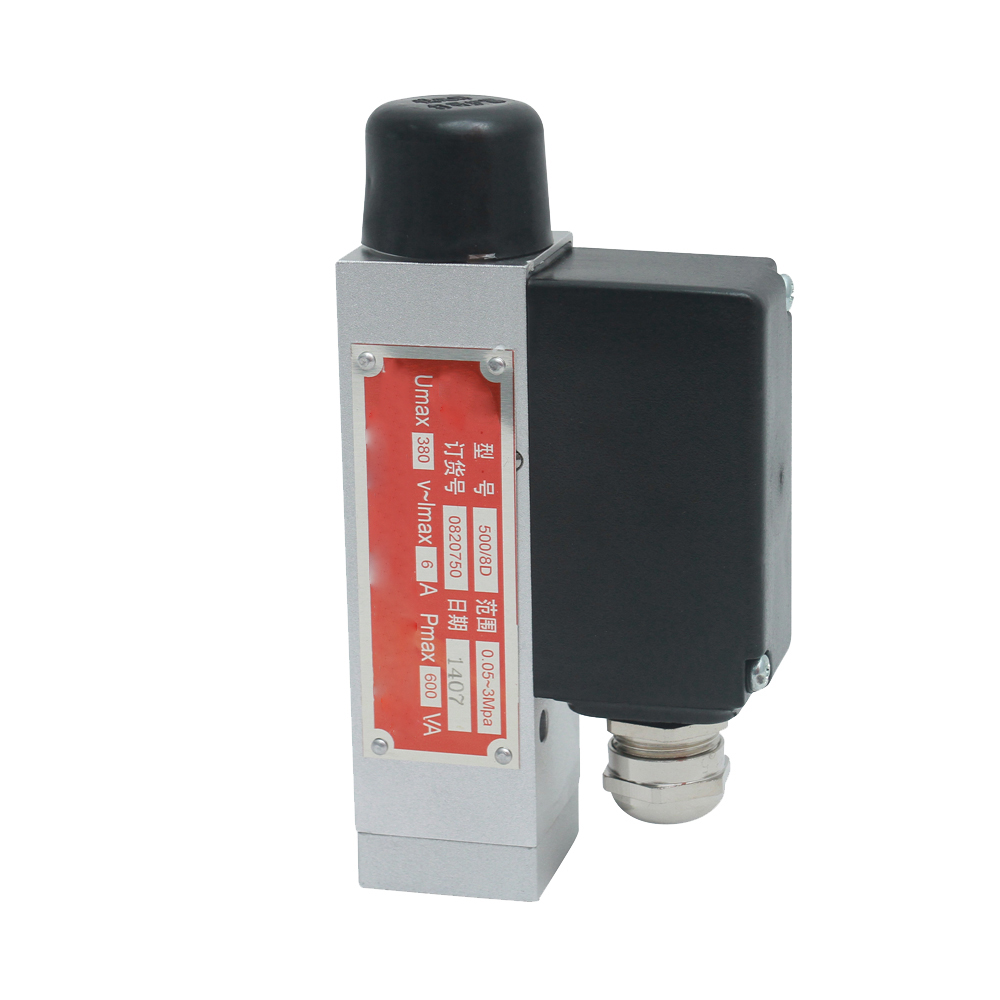

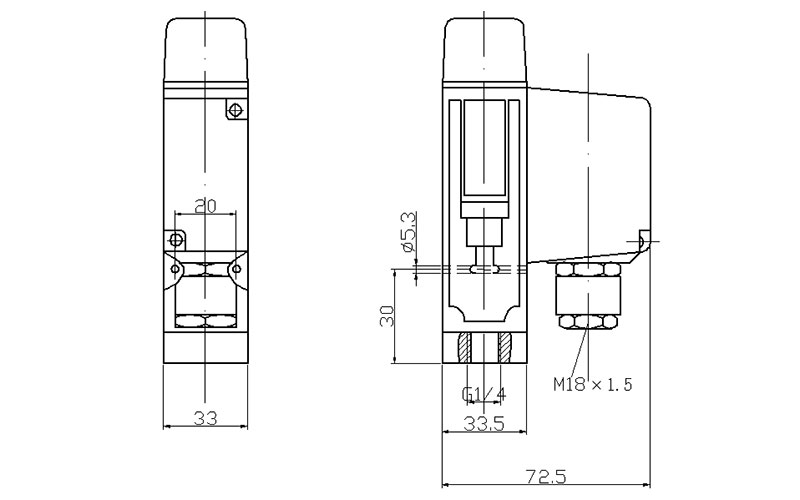

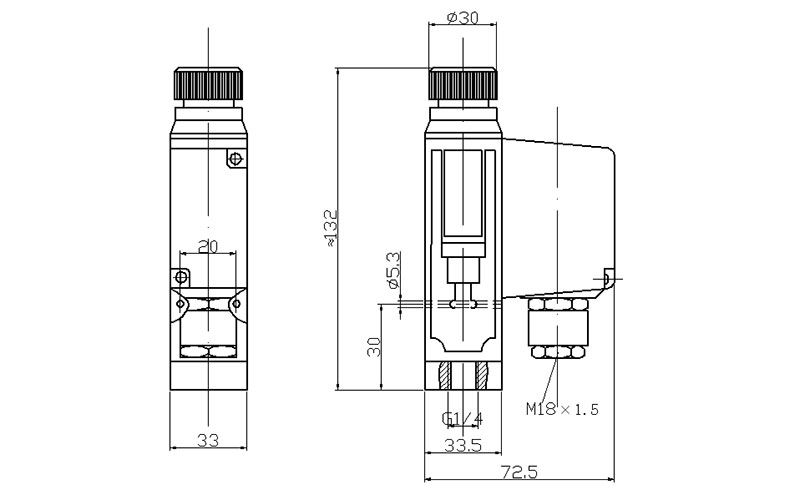

SH0015 Pressure Switch/Pressure Controller

OverviewThe
SH0015 Pressure Switch/Pressure Controller uses diaphragm sensor, which can be used with neutral gases such as air and gas, water, hydraulic oil, light fuel oil, lubricating oil and other liquid media that have no corrosive effect on the pressure sensor material.
The setting value of SH0015 pressure switch/pressure controller is adjustable, and the adjustment range is 0.02~3MPa. Compact, small and vibration-resistant.

Main technical performance

Working viscosity	< 1×10-3m2/s
Switching elements	Microswitches
Enclosure rating	IP65 (DIN40050 compliant, comparable to IP65 in GB4208)
Ambient temperature	－5℃～40℃
Medium temperature	0～90℃
Vibration resistance	Max 100m/s2
Repeatability error	≤1.5%
Contact capacity	AC 220V 6A (resistive)

Specification

The switching difference is not adjustable

The setting value adjustment range is MPa	The handover difference is not greater than MPa	Large allowable pressure (1) MPa*	The number of switches is switched at times/minute	Pressure sensor material		Pressure Connection Type(2)	Interface internal thread	Weight kg	Dimensions drawing number	Order catalogue number
				enclosure	Seals and diaphragms
Adjust the setpoint with hexagon socket screws with a plastic protective cover:
0.02～1.2	0.14	5	60	aluminium	nitrile rubber	I	G1/4	0.4	01	0015.10-153265
0.05～3	0.2	5	60	aluminium	nitrile rubber	I	G1/4	0.4	01	0015.10-170265
0.02～1.2	0.14	5	60	aluminium	nitrile rubber	P	G1/4	0.4	02	0015.10-153268
0.05～3	0.2	5	60	aluminium	nitrile rubber	P	G1/4	0.4	02	0015.10-170268

Note: (1) In practice, even a short peak pressure cannot exceed this value.
(2) The I interface is the internal thread and the P interface is the flange

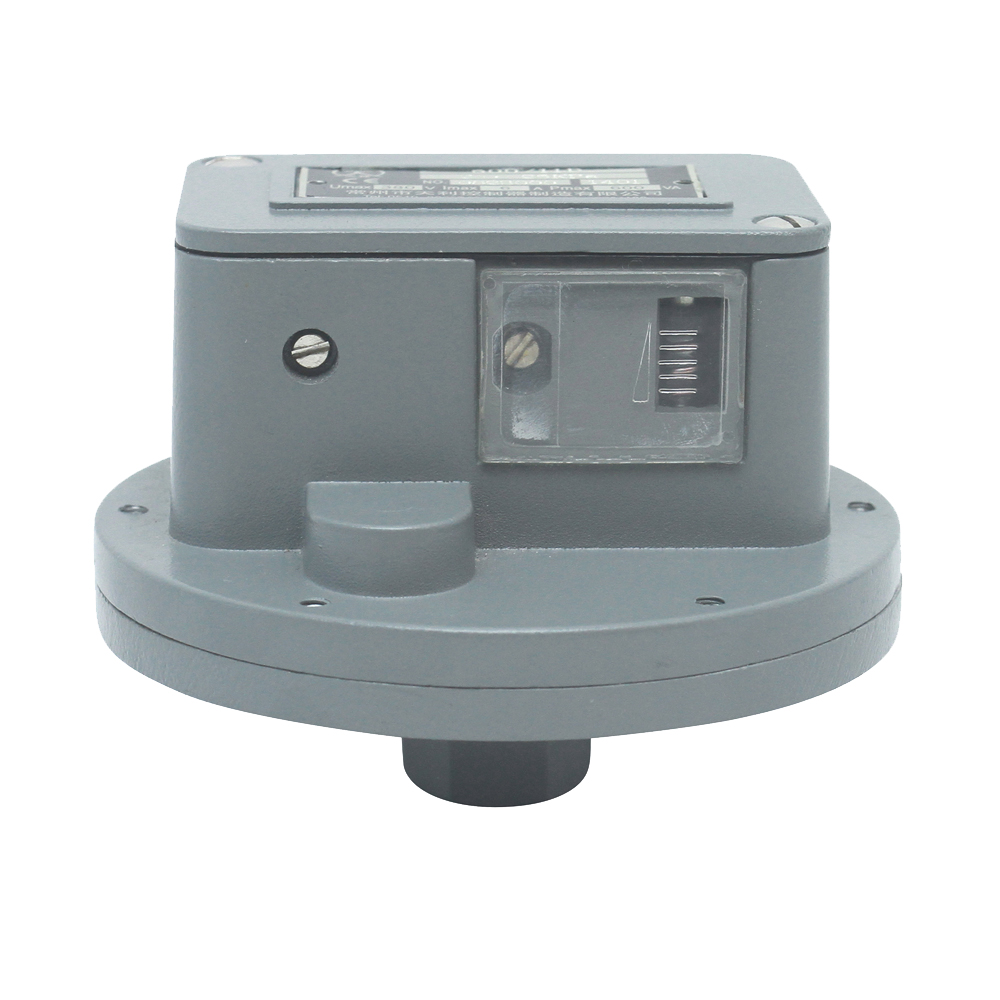

SH0019 Pressure Switch/Pressure Controller

OverviewThe
Overview SH0019 pressure switch/pressure controller adopts diaphragm sensor, which can be used for neutral gases such as air and coal gas and liquid media such as water, hydraulic oil, lubricating oil, light fuel oil, etc.
The setting value of SH0019 pressure switch/pressure controller is adjustable, and the adjustment range is 0~25KPa.

Main technical performance

Working viscosity	< 1×10-3m2/s
Switching elements	Microswitches
Enclosure rating	IP65 (DIN40050 compliant, comparable to IP65 in GB4208)
Medium temperature	0～80℃
Ambient temperature	－5℃～40℃
Vibration resistance	Avoid installation in vibration places as much as possible (Max 10m/s2)
Repeatability error	≤1.5%
Contact capacity	AC 220V 2A (resistive)

The switching difference is not adjustable

The setpoint adjustment range is KPa	The handover difference is not greater than KPa	*Large allowable pressure (1) KPa	The number of switches is switched at times/minute	Pressure sensor material		Interface internal thread	Weight kg	Dimensions drawing number	Order catalogue number
				enclosure	diaphragm
0～2	0.1	5	60	aluminium	nitrile rubber	G1/4	0.5	01	0019.10-017265
2～25	0.7	5	60	aluminium	nitrile rubber	G1/4	0.5	01	0019.10-033265

Note: (1) In practice, even a short pressure peak cannot exceed this value.
(2) It is only suitable for installation in the presence of no vibration.

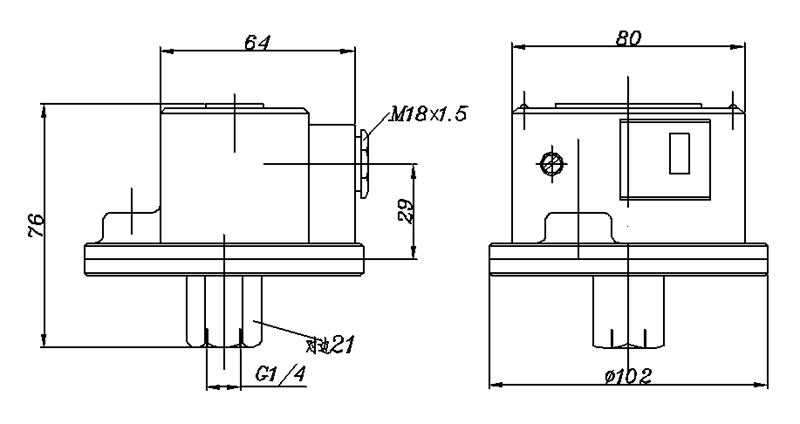

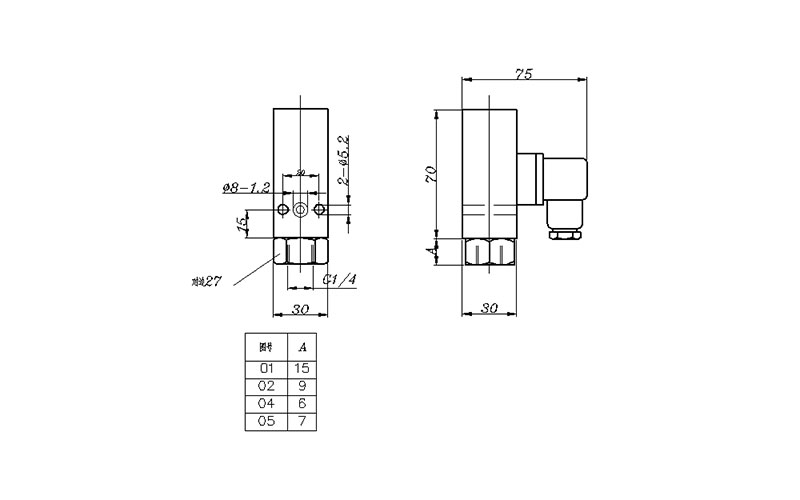

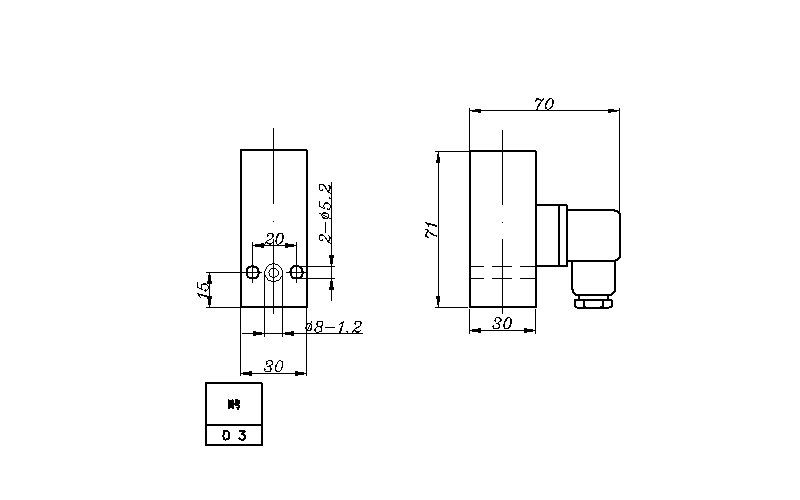

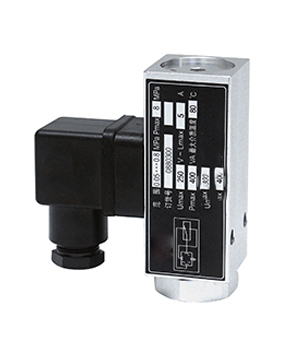

SH0022 Pressure Switch/Pressure Controller

OverviewThe
The SH0022 pressure switch/pressure controller is available in both diaphragm sensor and leak-free piston sensor. SH0022 pressure switch/pressure controller can be used for neutral gases such as air and gas, and liquid media such as lubricating oil and light fuel oil. The setting value of the controller is adjustable, and the adjustment range is -0.1~1.6MPa.
SH0022 Pressure Switch/Pressure Controller Leak-free Piston Sensor can be used for neutral lubricating media such as hydraulic oil, lubricating oil, light fuel oil, etc. The setting value of the controller is adjustable, and the adjustment range is 0.5~40MPa.
The compact design allows a high switching frequency of 100 times/min and is particularly resistant to vibration.

Main technical performance

Working viscosity	<1×10－3m2/s
Switching elements	Microswitches
Enclosure rating	IP54 (DIN40050 compliant, equivalent to IP54 in GB4208)
Installation location	Pressure connection vertically downwards (permissible tilt 15°)
Ambient temperature	－25℃～55℃
Medium temperature	－25℃～80℃
Vibration resistance	Max 100m/s2
Repeatability error	≤2.5%
Contact capacity	AC 220V 6A（阻性）

Specification

The switching difference is not adjustable

The setting value adjustment range is MPa	The handover difference is not greater than MPa	*Large allowable pressure (1) MPa	Pressure sensor material		Interface Type(2)	Interface internal thread	Weight kg	Dimensions drawing number	Order catalogue number
			enclosure	Seals
－0.1～0	0.02	8	To the	nitrile rubber	I	G1/4	0.2	01	0022.10-106265
－0.1～0	0.02	8	To the	nitrile rubber	P	-	0.2	03	0022.10-106268
0.02～0.2	0.04	8	To the	nitrile rubber	I	G1/4	0.2	01	0022.10-149265
0.02～0.2	0.04	8	To the	nitrile rubber	P	-	0.2	03	0022.10-149268
0.05～0.8	0.13	8	To the	nitrile rubber	I	G1/4	0.2	01	0022.10-165265
0.05～0.8	0.13	8	To the	nitrile rubber	P	-	0.2	03	0022.10-165268
0.1～1.6	0.24	8	To the	nitrile rubber	I	G1/4	0.2	02	0022.10-176265
0.1～1.6	0.24	8	To the	nitrile rubber	P	-	0.2	03	0022.10-176268

Switching Difference is not adjustable

The setting value adjustment range is MPa	The handover difference is not greater than MPa	*Large allowable pressure (1) MPa	Pressure sensor material			Interface Type(2)	Interface internal thread	Weight kg	Dimensions drawing number	Order catalogue number
			enclosure	Seals	piston
0.5～7	2	40	To the	nitrile rubber	steel	I	G1/4	0.2	04	0522.10-201066
0.5～7	2	40	To the	nitrile rubber	steel	P	-	0.2	03	0522.10-201078
1～16	3.5	40	To the	nitrile rubber	steel	I	G1/4	0.2	04	0522.10-212066
1～16	3.5	40	To the	nitrile rubber	steel	P	-	0.2	03	0522.10-212078
2.5～25	4	40	To the	nitrile rubber	steel	I	G1/4	0.2	05	0522.10-224066
2.5～25	4	40	To the	nitrile rubber	steel	P	-	0.2	03	0522.10-224278
4～40	4.5	40	To the	nitrile rubber	steel	I	G1/4	0.2	05	0522.10-228066
4～40	4.5	40	To the	nitrile rubber	steel	P	-	0.2	03	0522.10-228078

Note: (1) In practice, even a short peak pressure cannot exceed this value.
(2) The I-interface is an internal thread, and the P-interface is a flange

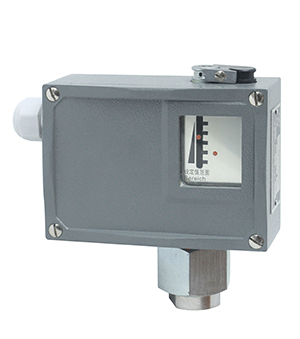

SH0102 Pressure Switch/Pressure Controller

OverviewThe
SH0102 pressure switch adopts diaphragm type sensor, some specifications of the sensor housing material is stainless steel, can be used for corrosive media, can also be used for air, gas, water vapor and other neutral gases and oil and other liquid media.
The setting value of SH0102 pressure switch is adjustable, and the adjustment range is 0~1MPa. High sensitivity in the low pressure range.

Main technical performance

	Ordinary type	explosion-proof
Working viscosity	<1×10－3m2/s	<1×10－3m2/s
Switching elements	Microswitches	Sealed switches
Explosion-proof rating	-	Exde Ⅱ CT4～T6
Enclosure rating	IP65 (DIN40050 compliant, comparable to IP65 in GB4208)	IP54 (DIN40050 compliant, equivalent to IP54 in GB4208)
Ambient temperature	－5℃～40℃	－5℃～40℃
Medium temperature	0～120℃	0～95℃
Installation location	-	The pressure connection is vertically downward
Vibration resistance	20m/s2	Max：20m/s2
Repeatability error	≤1.5%	≤1.5%
Contact capacity	AC 220V 6A(阻性)	DC 250V 0.25A(阻性) 60Wmax AC 250V 5A(阻性) 1250VAmax

specification
Switching Difference is not adjustable

The setting value adjustment range is MPa	The handover difference is not greater than MPa	Large allowable pressure (1) MPa*	The number of switches is switched at times/minute	Pressure sensor material		Interface internal thread	Weight kg	Dimensions drawing number		Order catalogue number
				enclosure	diaphragm			Ordinary type	explosion-proof	Ordinary type	explosion-proof
0～0.01	0.0012	0.1	10	stainless steel	Stainless steel (316L)	G1/4	0.9	01	03	0102.10-107117	0102.50-107117
0～0.025	0.0018	0.1	10	stainless steel	Stainless steel (316L)	G1/4	0.9	01	03	0102.10-108117	0102.50-108117
0～0.04	0.0025	0.1	10	stainless steel	Stainless steel (316L)	G1/4	0.9	01	03	0102.10-109117	0102.50-109117
0.05～0.4	0.06	10②	10	不锈钢1Cr18Ni9Ti	Stainless steel (316L)	G1/4	0.9	02	04	0102.10-163117	0102.50-163117
0.05～0.6	0.07	10②	10	不锈钢1Cr18Ni9Ti	Stainless steel (316L)	G1/4	0.9	02	04	0102.10-164117	0102.50-164117
0.05～1	0.1	10②	10	不锈钢1Cr18Ni9Ti	Stainless steel (316L)	G1/4	0.9	02	04	0102.10-166117	0102.50-166117

The switching difference is adjustable

Set the adjustment range MPa	The handover difference is not greater than MPa	Large allowable pressure (1) MPa*	The number of switches is switched at times/minute	Pressure sensor material		Interface internal thread	Weight kg	Dimensions drawing number		Order catalogue number
				enclosure	diaphragm			Ordinary type	explosion-proof	Ordinary type	explosion-proof
0～0.01	0.004	0.1	10	stainless steel	Stainless steel (316L)	G1/4	0.95	01	03	0102.00-107117	0102.40-107117
0～0.025	0.005	0.1	10	stainless steel	Stainless steel (316L)	G1/4	0.9	01	03	0102.00-108117	0102.40-108117
0～0.04	0.007	0.1	10	stainless steel	Stainless steel (316L)	G1/4	0.95	01	03	0102.00-109117	0102.40-109117
0.05～0.4	0.18	10②	10	不锈钢1Cr18Ni9Ti	Stainless steel (316L)	G1/4	0.95	02	04	0102.00-163117	0102.40-163117
0.05～0.6	0.22	10②	10	不锈钢1Cr18Ni9Ti	Stainless steel (316L)	G1/4	0.95	02	04	0102.00-164117	0102.40-164117
0.05～1	0.3	10②	10	不锈钢1Cr18Ni9Ti	Stainless steel (316L)	G1/4	0.95	02	04	0102.00-166117	0102.40-166117

Switching difference is not adjustable (small switching difference, no explosion-proof type)

The setting value adjustment range is MPa	The handover difference is not greater than MPa	Large allowable pressure (1) MPa*	The number of switches is switched at times/minute	Pressure sensor material		Interface internal thread	Weight kg	Dimensions drawing number	Order catalogue number
				enclosure	diaphragm
0～0.01	0.0006	0.1	10	stainless steel	Stainless steel (316L)	G1/4	0.9	01	0103.70-107117
0～0.025	0.001	0.1	10	stainless steel	Stainless steel (316L)	G1/4	0.9	01	0103.70-108117
0～0.04	0.0018	0.1	10	stainless steel	Stainless steel (316L)	G1/4	0.9	01	0103.70-109117
0.05～0.4	0.035	10②	10	不锈钢1Cr18Ni9Ti	Stainless steel (316L)	G1/4	0.9	02	0103.70-163117
0.05～0.6	0.04	10②	10	不锈钢1Cr18Ni9Ti	Stainless steel (316L)	G1/4	0.9	02	0103.70-164117
0.05～1	0.05	10②	10	不锈钢1Cr18Ni9Ti	Stainless steel (316L)	G1/4	0.9	02	0103.70-166117

Note: (1) In practice, even a short pressure peak cannot exceed this value.
(2) Refers to the static pressure value.

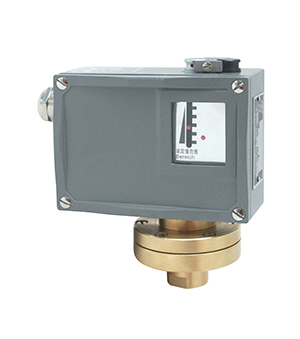

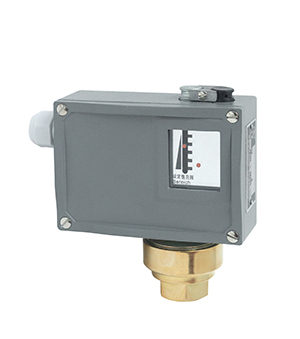

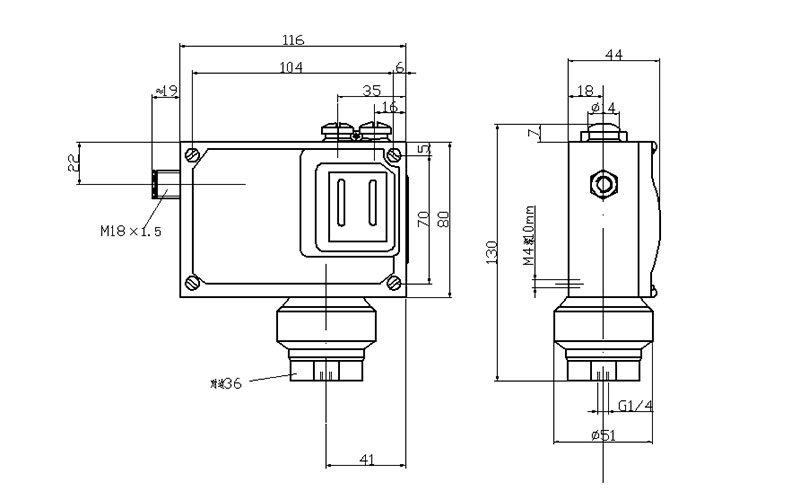

SH0202 Pressure Switch (Medium Pressure)

OverviewThe
SH0202 Pressure Switch (Medium Pressure)/Pressure Controller uses bellows-type sensors that can be used for neutral gases such as air, gas, and water vapor, and liquid media such as water, refrigerants, and oil, and can be used for vacuum.
SH0202 pressure switch (medium pressure)/pressure controller set value is adjustable, the adjustment range is -0.1~2.5MPa. If there are special requirements, the adjustment range can be designed separately -0.1~6.3MPa.

Main technical performance

	Ordinary type	explosion-proof
Working viscosity	<1×10－3m2/s	<1×10－3m2/s
Switching elements	Microswitches	Sealed switches
Explosion-proof rating	-	Exde Ⅱ CT4～T6
Enclosure rating	IP65 (DIN40050 compliant, comparable to IP65 in GB4208)	IP54 (DIN40050 compliant, equivalent to IP54 in GB4208)
Ambient temperature	－40℃～50℃	－40℃～50℃
Medium temperature	0～120℃	0～120℃
Installation location	-	The pressure connection is vertically downward
Vibration resistance	0202：40m/s2 ； 0203：20m/s2	Max：20m/s2
Repeatability error	≤1%	≤1 %
Contact capacity	AC 220V 6A(阻性)	DC 250V 0.25A(阻性) 60Wmax AC 250V 5A(阻性) 1250VAmax

Specification:
SH0202: The switching difference is not adjustable

The setting point adjustment rangeis MPa	The switching difference is not greater than MPa	*Large allowable pressure (1) MPa	The number of switch switches is times/min	Pressure sensor material		Socket Female Thread	Weight kg	Dimensions drawing number		Order catalogue number
The setting point adjustment rangeis MPa	The switching difference is not greater than MPa	*Large allowable pressure (1) MPa	The number of switch switches is times/min	enclosure	Bellows	Socket Female Thread	Weight kg	Ordinary type	explosion-proof	Ordinary type	explosion-proof

－0.1～0	0.007	1	20	brass	Stainless Steel (316L)	G1/4	1	1	4	0202.10-106066	0202.50-106066
－0.1～0.1	0.008	1	20	brass	Stainless Steel (316L)	G1/4	1	1	4	0202.10-105066	0202.50-105066
－0.1～0.16	0.009	1	20	brass	Stainless Steel (316L)	G1/4	1	1	4	0202.10-104066	0202.50-104066
－0.1～0.25	0.012	1	20	brass	Stainless Steel (316L)	G1/4	1	1	4	0202.10-103066	0202.50-103066
0～0.1	0.008	1	20	brass	Stainless Steel (316L)	G1/4	1	1	4	0202.10-110066	0202.50-110066
0～0.16	0.009	1	20	brass	Stainless Steel (316L)	G1/4	1	1	4	0202.10-111066	0202.50-111066
0.01～0.25	0.01	1	20	brass	Stainless Steel (316L)	G1/4	1	1	4	0202.10-145066	0202.50-145066
0.02～0.4	0.03	2	20	brass	Stainless Steel (316L)	G1/4	0.85	2	5	0202.10-151066	0202.50-151066
0.03～0.6	0.035	2	20	brass	Stainless Steel (316L)	G1/4	0.85	2	5	0202.10-156066	0202.50-156066
0.03～1	0.04	2	20	brass	Stainless Steel (316L)	G1/4	0.85	2	5	0202.10-158066	0202.50-158066
0.05～1.6	0.08	5	20	brass	Stainless Steel (316L)	G1/4	0.9	3	6	0202.10-167066	0202.50-167066
0.05～2.5	0.09	5	20	brass	Stainless Steel (316L)	G1/4	0.9	3	6	0202.10-169066	0202.50-169066

The switching difference is adjustable

The setting point adjustment range is MPa	The switching difference is not greater than MPa	*Large allowable pressure (1) MPa	The number of switch switches is times/min	Pressure sensor material		Socket Female Thread	Weight kg	Dimensions drawing number		Order catalogue number
				enclosure	Bellows			Ordinary type	explosion-proof	Ordinary type	explosion-proof
－0.1～0	0.019	1	20	brass	Stainless Steel (316L)	G1/4	1.05	1	4	0202.00-106066	0202.40-106066
－0.1～0.1	0.021	1	20	brass	Stainless Steel (316L)	G1/4	1.05	1	4	0202.00-105066	0202.40-105066
－0.1～0.16	0.022	1	20	brass	Stainless Steel (316L)	G1/4	1.05	1	4	0202.00-104066	0202.40-104066
－0.1～0.25	0.024	1	20	brass	Stainless Steel (316L)	G1/4	1.05	1	4	0202.00-103066	0202.40-103066
0～0.1	0.016	1	20	brass	Stainless Steel (316L)	G1/4	1.05	1	4	0202.00-110066	0202.40-110066
0～0.16	0.02	1	20	brass	Stainless Steel (316L)	G1/4	1.05	1	4	0202.00-111066	0202.40-111066
0.01～0.25	0.024	1	20	brass	Stainless Steel (316L)	G1/4	1.05	1	4	0202.00-145066	0202.40-145066
0.02～0.4	0.08	2	20	brass	Stainless Steel (316L)	G1/4	0.9	2	5	0202.00-151066	0202.40-151066
0.03～0.6	0.09	2	20	brass	Stainless Steel (316L)	G1/4	0.9	2	5	0202.00-156066	0202.40-156066
0.03～1	0.1	2	20	brass	Stainless Steel (316L)	G1/4	0.9	2	5	0202.00-158066	0202.40-158066
0.05～1.6	0.19	5	20	brass	Stainless Steel (316L)	G1/4	0.95	3	6	0202.00-167066	0202.40-167066
0.05～2.5	0.2	5	20	brass	Stainless Steel (316L)	G1/4	0.95	3	6	0202.00-169066	0202.40-169066

Switching difference is not adjustable (small switching difference, no explosion-proof type)

The setting point adjustment range is MPa	The switching difference is not greater than MPa	*Large allowable pressure (1) MPa	The number of switch switches is times/min	Pressure sensor material		Female thread of the joint	Weight kg	Dimensions drawing number	Order catalogue number
				enclosure	Bellows
－0.1～0	0.0045	1	20	brass	Stainless Steel (316L)	G1/4	1	1	0203.70-106066
－0.1～0.1	0.005	1	20	brass		G1/4	1	1	0203.70-105066
－0.1～0.16	0.0065	1	20	brass		G1/4	1	1	0203.70-104066
－0.1～0.25	0.01	1	20	brass		G1/4	1	1	0203.70-103066
0～0.1	0.0045	1	20	brass		G1/4	1	1	0203.70-110066
0～0.16	0.006	1	20	brass		G1/4	1	1	0203.70-111066
0.01～0.25	0.007		20	brass		G1/4	1	1	0203.70-145066
0.02～0.4	0.016		20	brass		G1/4	0.85	2	0203.70-151066
0.03～0.6	0.02		20	brass		G1/4	0.85	2	0203.70-156066
0.03～1	0.03		20	brass		G1/4	0.85	2	0203.70-158066
0.05～1.6	0.05		20	brass		G1/4	0.85	2	0203.70-167066
0.05～2.5	0.06		20	brass		G1/4	0.85	2	0203.70-169066
