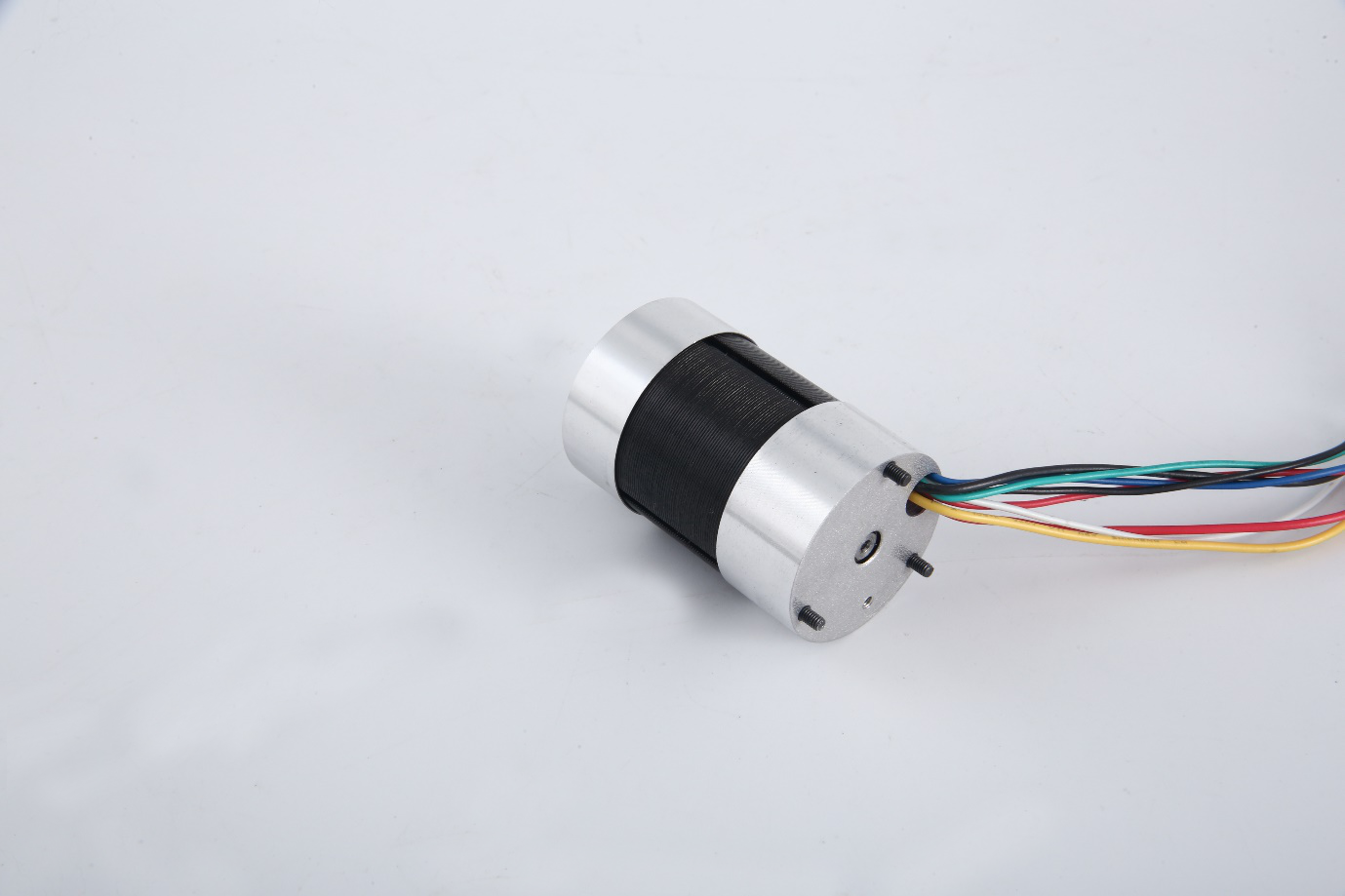

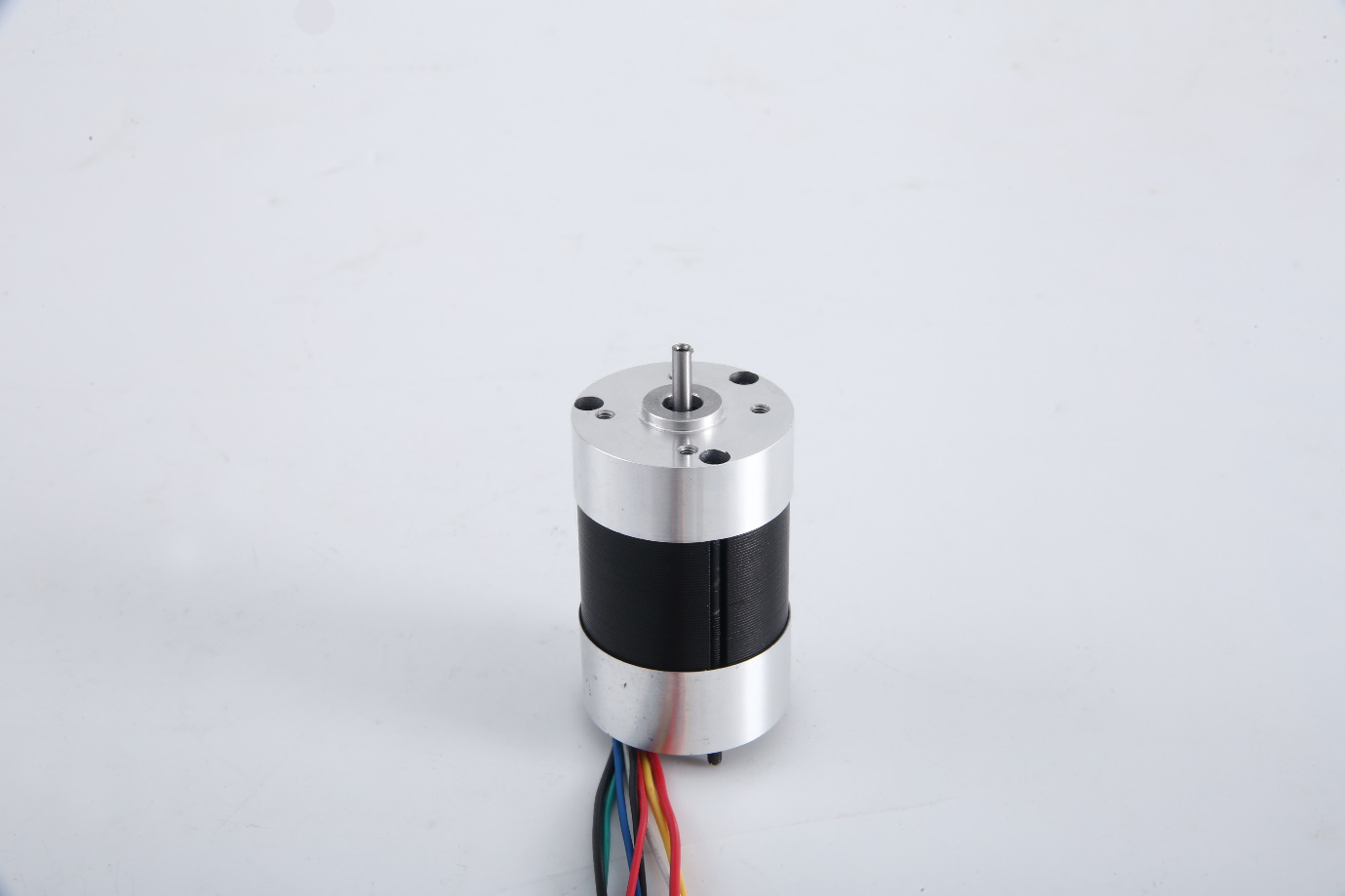

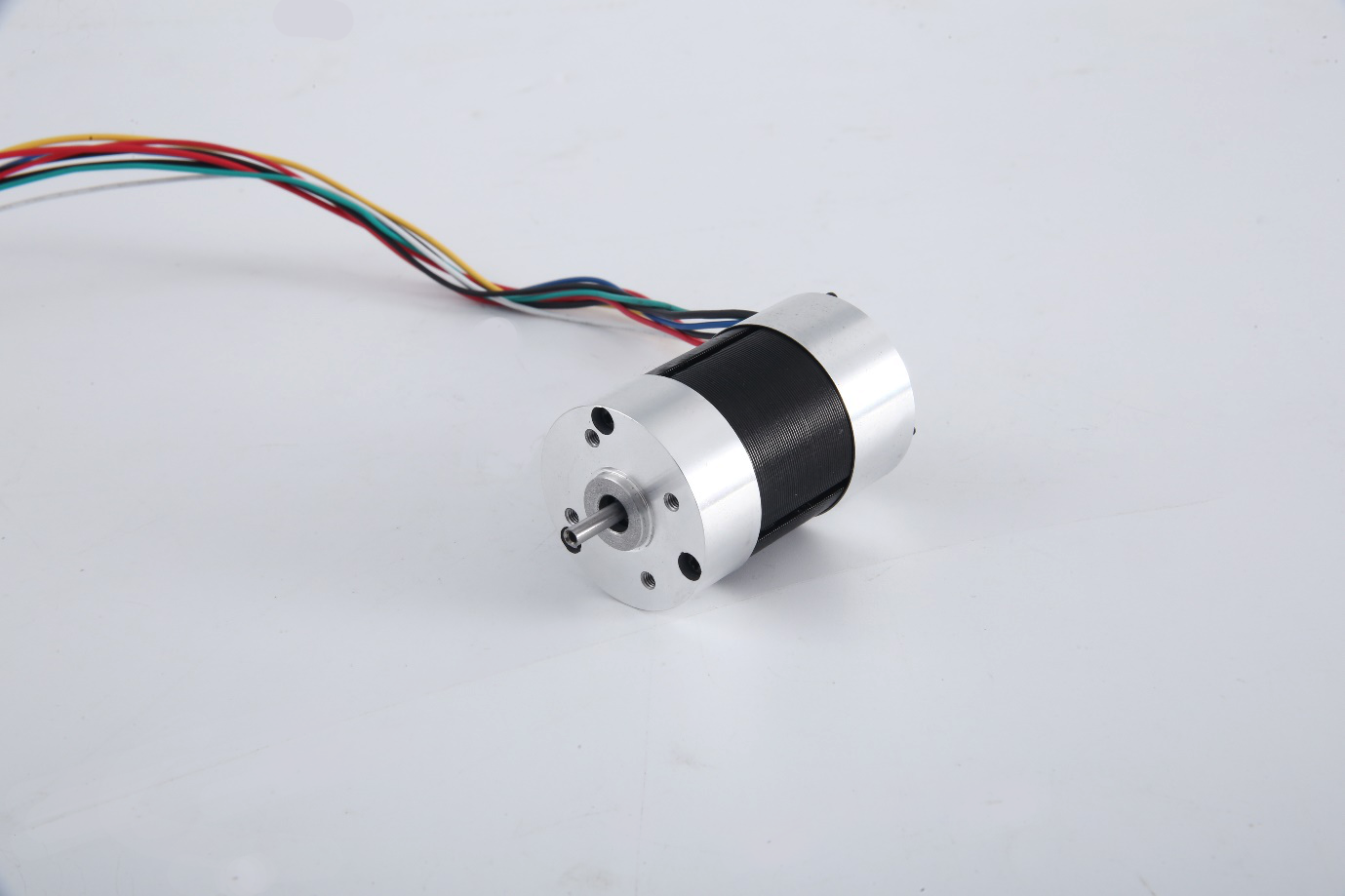

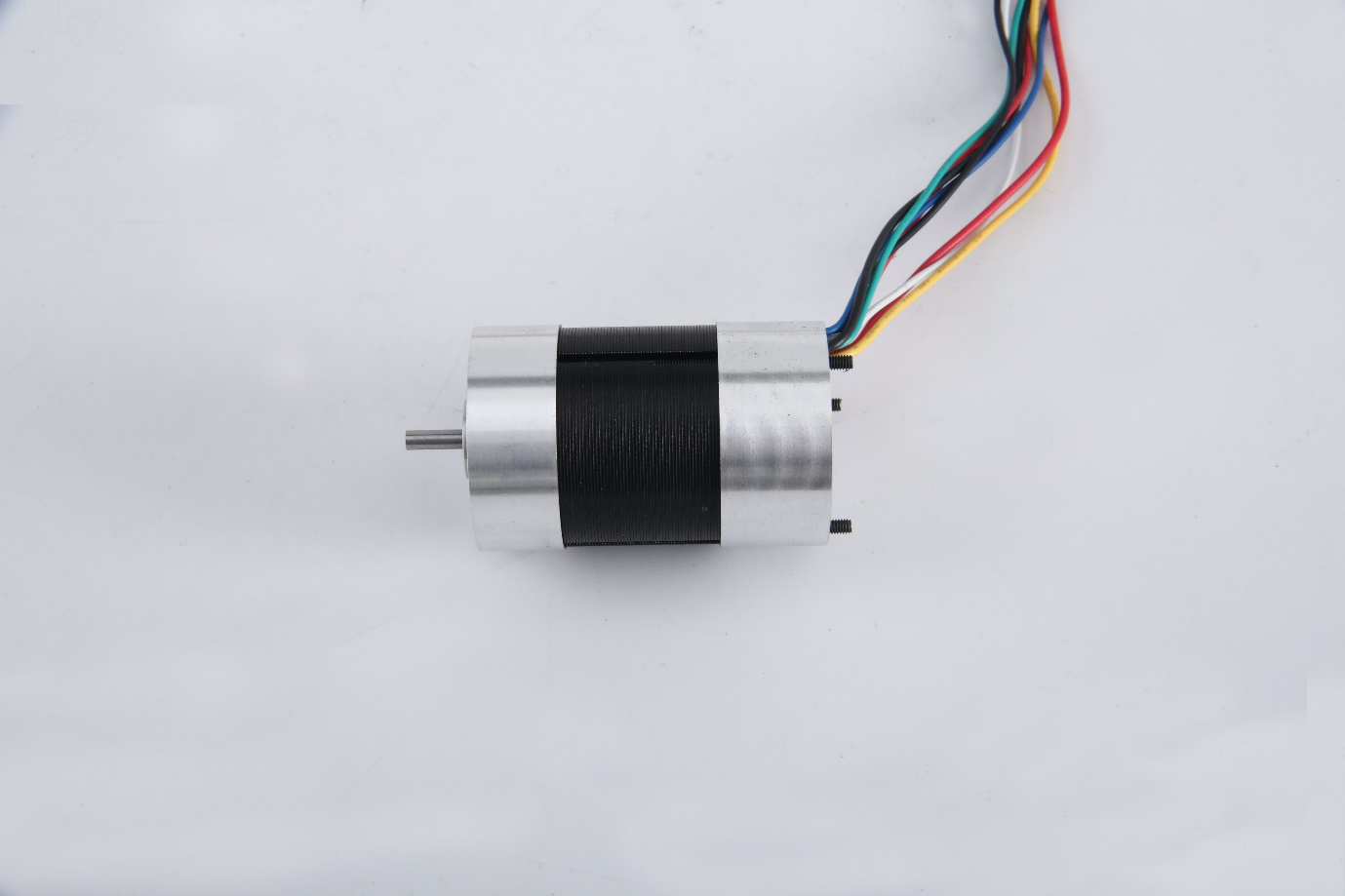

BLDC Motor SHINE 36 Series

Technical parameters
Winding connection: Y connection
Hall distribution angle: 120 degree electrical angle
Shaft runout: 0.025mm
Insulation grade: B
Dielectric strength: 500VDC for one minute
Working environment: -30℃--40℃
Can provide voltage, performance, stop size and rotating shaft and other special design, can also be equipped with encoder, driver, brake device, gear box and other devices.

Remarks
1.The output shaft can be customized, the rear output shaft can be increased, and the diameter range is 4-8mm 2.The voltage/speed can be customized according to the requirements 3.It can be equipped with all kinds of reducers, and can be equipped with all kinds of brakes/encoders/synchronous wheels, etc. 4. It can be combined with the driver

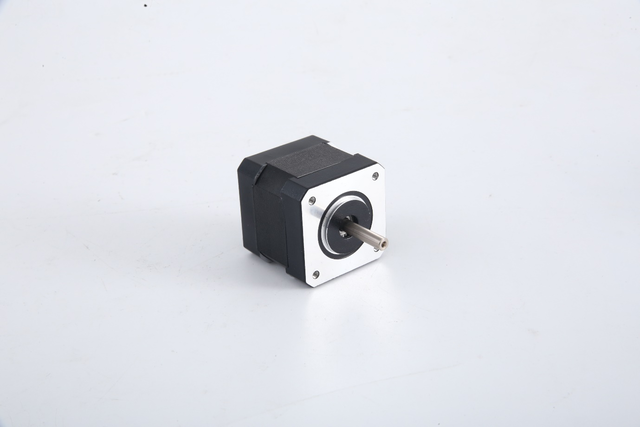

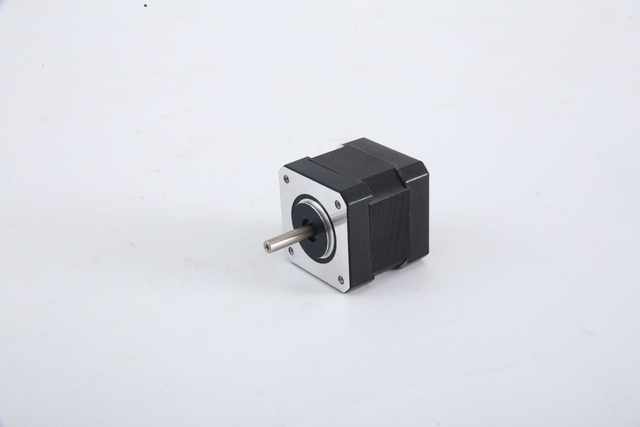

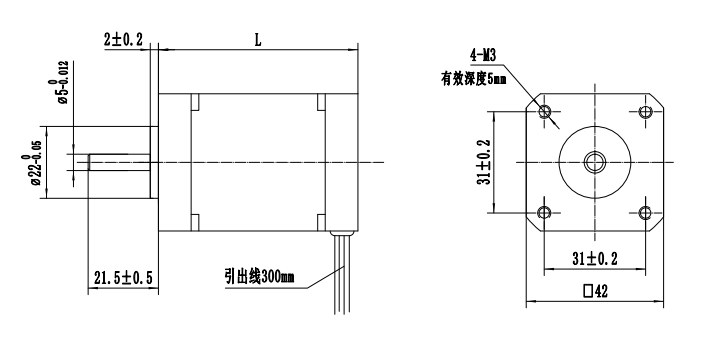

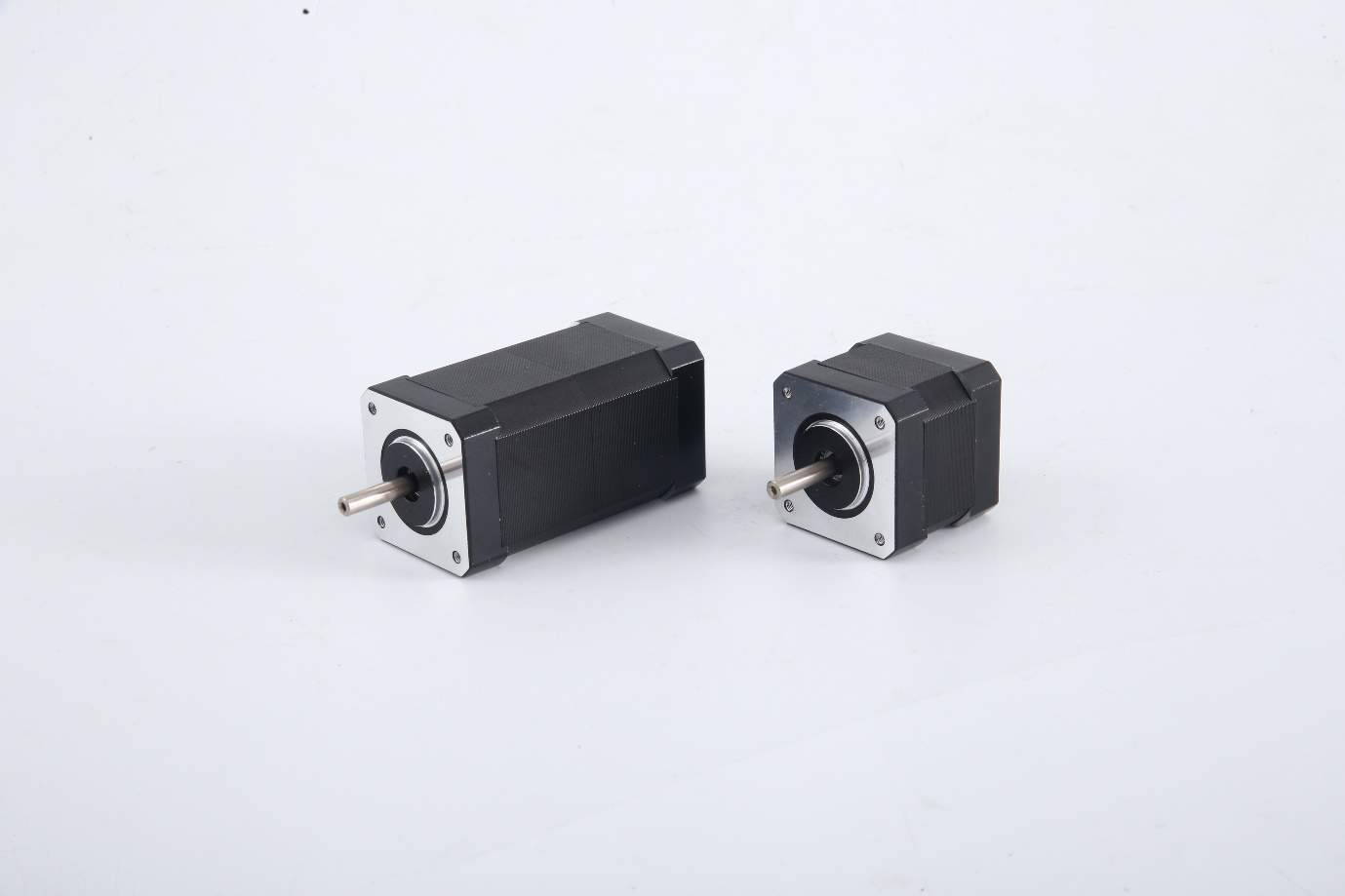

BLDC Motor 42 Series

Technical parameters
Winding connection: Y connection
Hall distribution angle: 120 degree electrical angle
Shaft runout: 0.025mm
Insulation grade: B
Dielectric strength: 500VDC for one minute
Working environment: -30℃--40℃
Can provide voltage, performance, stop size and rotating shaft and other special design, can also be equipped with encoder, driver, brake device, gear box and other devices.

Performance parameter

Model	voltage	No-load speed	No-load current	Rated torque	Rated speed	Current rating	power
4220	24	5000	0.4	0.063	4000	1.4	25
4230	24	5000	0.5	0.096	4000	1.7	30
4240	24	5000	0.6	0.125	4000	2.8	50
4260	24	5000	0.7	0.18	4000	4.2	75
4280	24	5000	0.8	0.25	4000	5.6	100

Remarks
1.The output shaft can be customized, with a diameter range of 4-8mm
2.The voltage speed can be customized according to the requirements
3.It can be equipped with various types of reducer, and can be equipped with all kinds of brakes/encoders/synchronous wheels, etc.
4. It can be combined with the driver

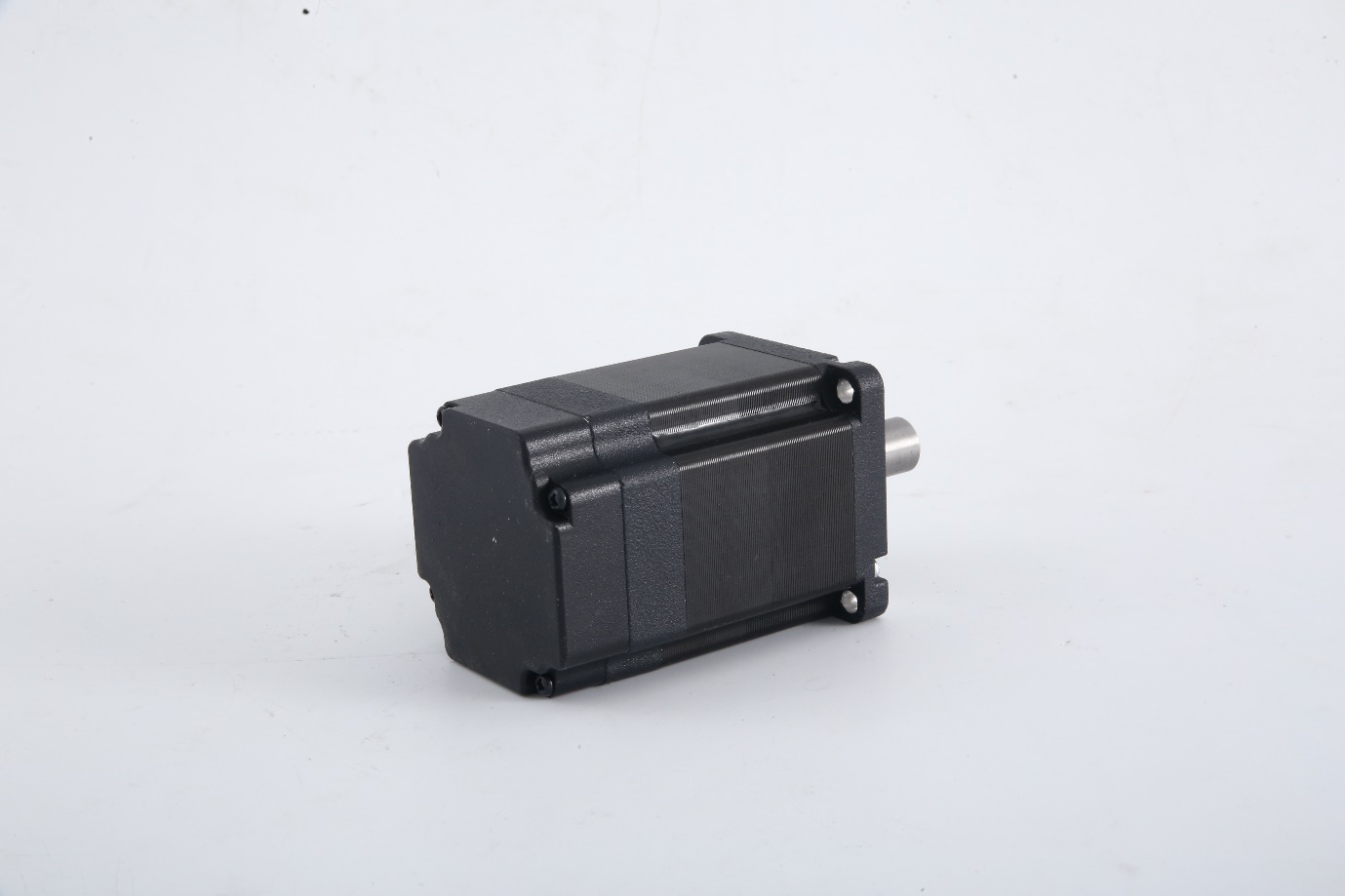

BLDC Motor 57 Series

Technical parameters
Winding wiring method: Y connection
Hall distribution angle: 120 degree electrical angle
Runout : 0.025mm
Insulation Class: B
Dielectric Strength: 500VDC for
Operating environment: -30°C--40°C
It can provide voltage, performance, mouth size and shaft design, and can be equipped with encoders, drivers, brakes, gearboxes and other devices.

Performance parameter

Model	voltage	No-load speed	No-load current	Rated torque	Rated speed	Current rating	power
5710	24	5000	0.4	0.055	4000	1.4	25
5720	24	5000	0.5	0.11	4000	2.5	45
5740	24	5000	0.6	0.22	4000	5	90
5760	24	5000	0.7	0.32	4000	7.2	130
5780	24	5000	0.8	0.43	4000	10	180

Remarks
1. The output shaft can be customized, with a diameter range of 6-12mm
2. The voltage speed can be customized according to the requirements
3. It can be equipped with various types of reducer, and can be equipped with all kinds of brakes/encoders/synchronous wheels, etc.
4. It can be combined with the driver

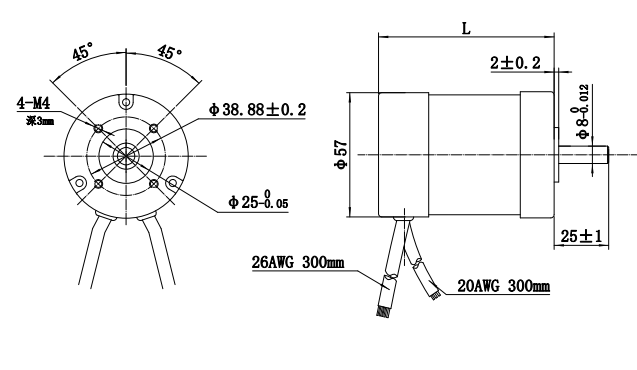

BLDC Motor 57 6P Series

Technical parameters
Winding wiring method: Y connection
Hall distribution angle: 120 degree electrical angle
Runout : 0.025mm
Insulation Class: B
Dielectric Strength: 500VDC for
Operating environment: -30°C--40°C
It can provide voltage, performance, mouth size and shaft design, and can be equipped with encoders, drivers, brakes, gearboxes and other devices.

Performance parameter

Model	voltage	No-load speed	No-load current	Rated torque	Rated speed	Current rating	power
5720HS	24	4700	0.5	0.2	3500	4	70
5735HS	24	4700	0.6	0.37	3500	7.5	135
5770HS	24	4700	0.7	0.7	3500	14	255

Remarks
1.The shaft can be customized, with a diameter range of 8-15mm
2.The voltage speed can be customized according to the requirements
3.It can be equipped with various types of reducer, and can be equipped with all kinds of brakes/encoders/synchronous wheels, et

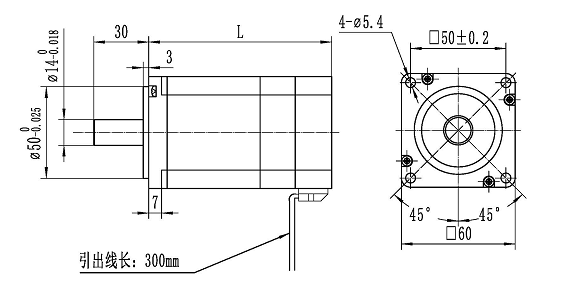

BLDC Motor 60 Series

Technical parameters
Winding wiring method: Y connection
Hall distribution angle: 120 degree electrical angle
Runout : 0.025mm
Insulation Class: B
Dielectric Strength: 500VDC for
Operating environment: -30°C--40°C
It can provide voltage, performance, mouth size and shaft design, and can be equipped with encoders, drivers, brakes, gearboxes and other devices.

Performance parameter

Model	voltage	No-load speed	No-load current	Rated torque	Rated speed	Current rating	power
6022	24	5000	0.8	0.3	4000	7.2	130
6042	24	5000	1	0.6	4000	14	250
6062	24	5000	1.3	0.9	4000	22	370

Remarks
1.The shaft can be customized, with a diameter range of 8-15mm
2.The voltage speed can be customized according to the requirements
3.It can be equipped with various types of reducer, and can be equipped with all kinds of brakes/encoders/synchronous wheels, etc

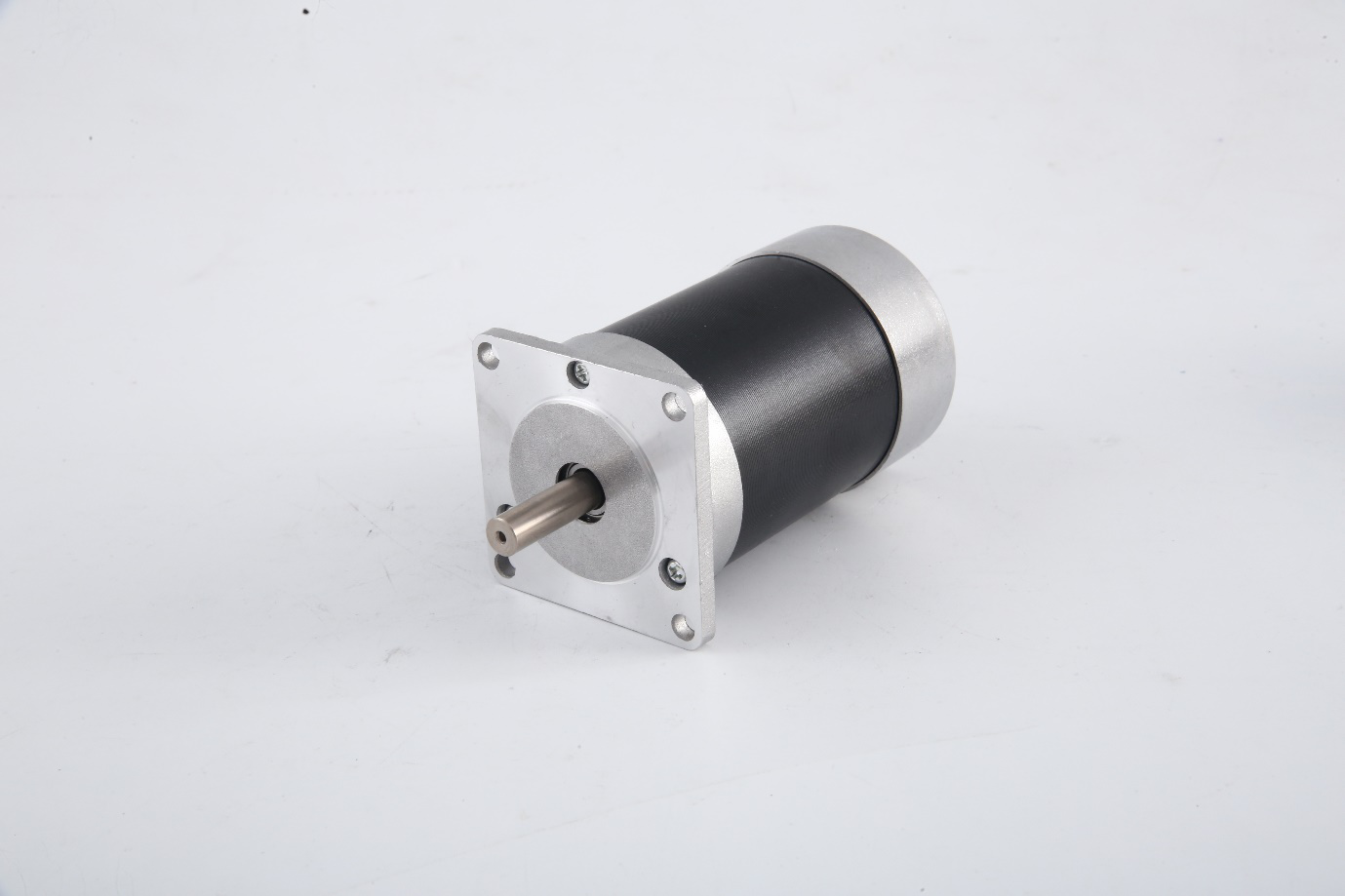

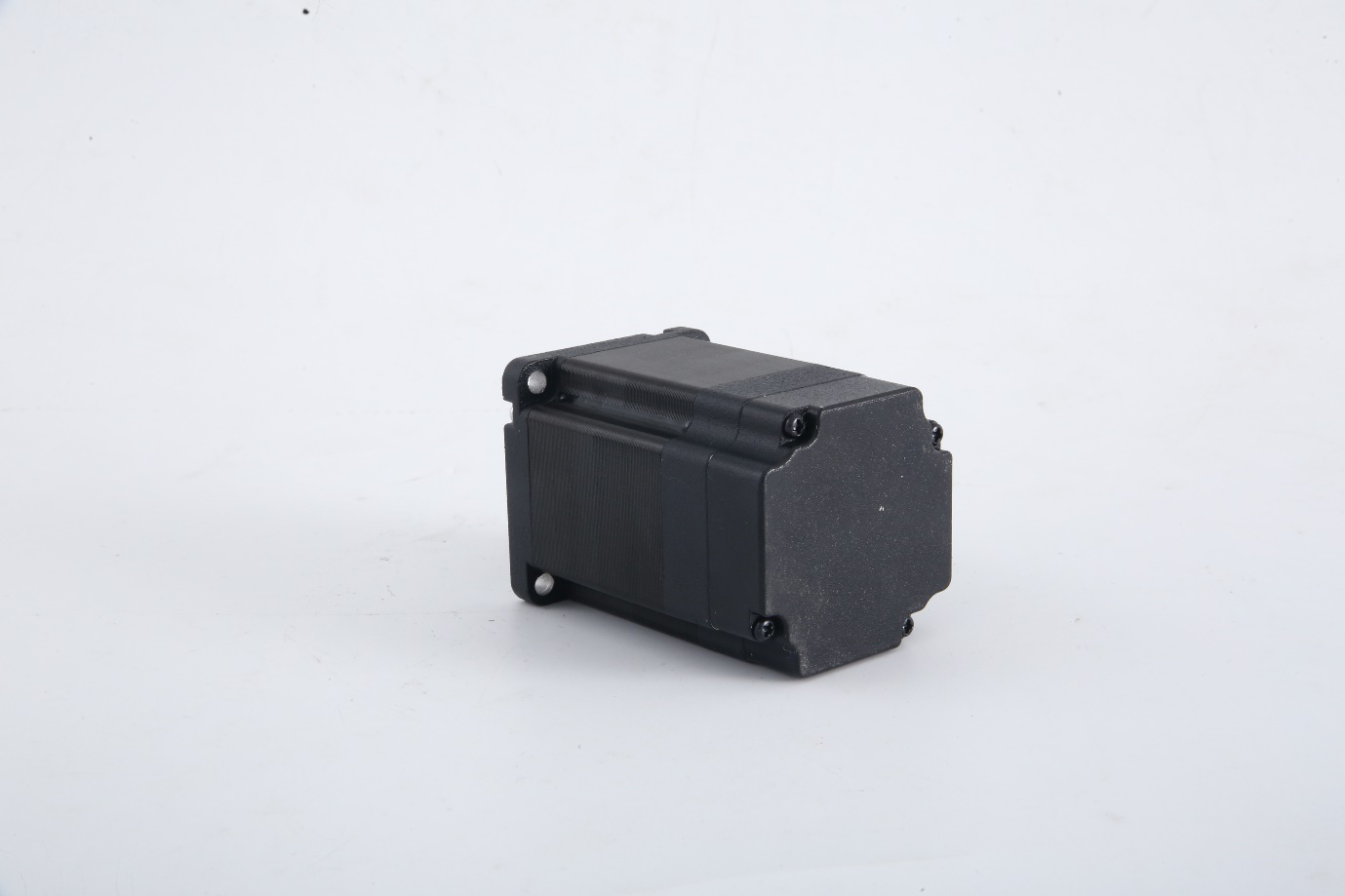

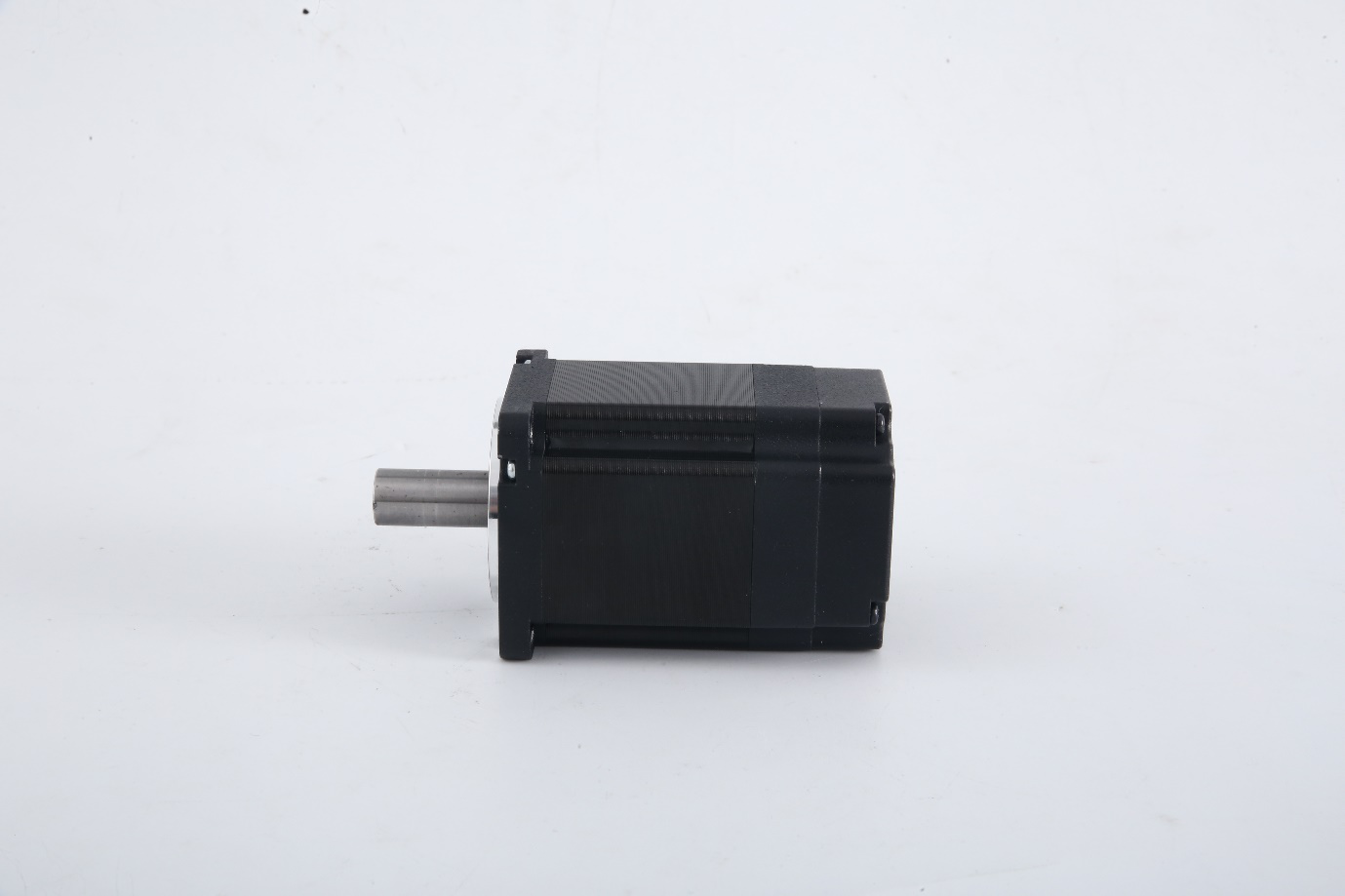

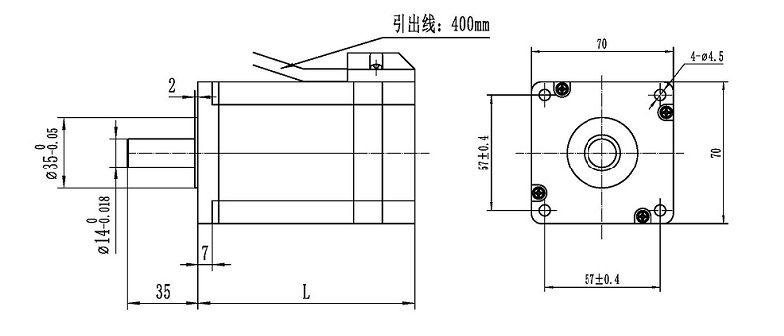

BLDC Motor 70 Series

Technical parameters
Winding wiring method: Y connection
Hall distribution angle: 120 degree electrical angle
Runout : 0.025mm
Insulation Class: B
Dielectric Strength: 500VDC for
Operating environment: -10°C--40°C
It can be specially designed for voltage, performance, mouth size and rotating shaft, and can be equipped with encoders, drivers, brakes, gearboxes and other devices.

Performance parameter

Model	voltage	No-load speed	No-load current	Rated torque	Rated speed	Current rating	power
7022	36	4000	0.8	0.6	3000	7	190
7042	36	4000	1	1	3000	11	300
7062	36	4000	1.3	1.4	3000	15.5	430
7072	36	4000	1.3	1.6	3000	19	530

Remarks
1.The shaft can be customized, with a diameter range of 8-15mm
2.The voltage speed can be customized according to the requirements
3.It can be equipped with various types of reducer, and can be equipped with all kinds of brakes/encoders/synchronous wheels, etc

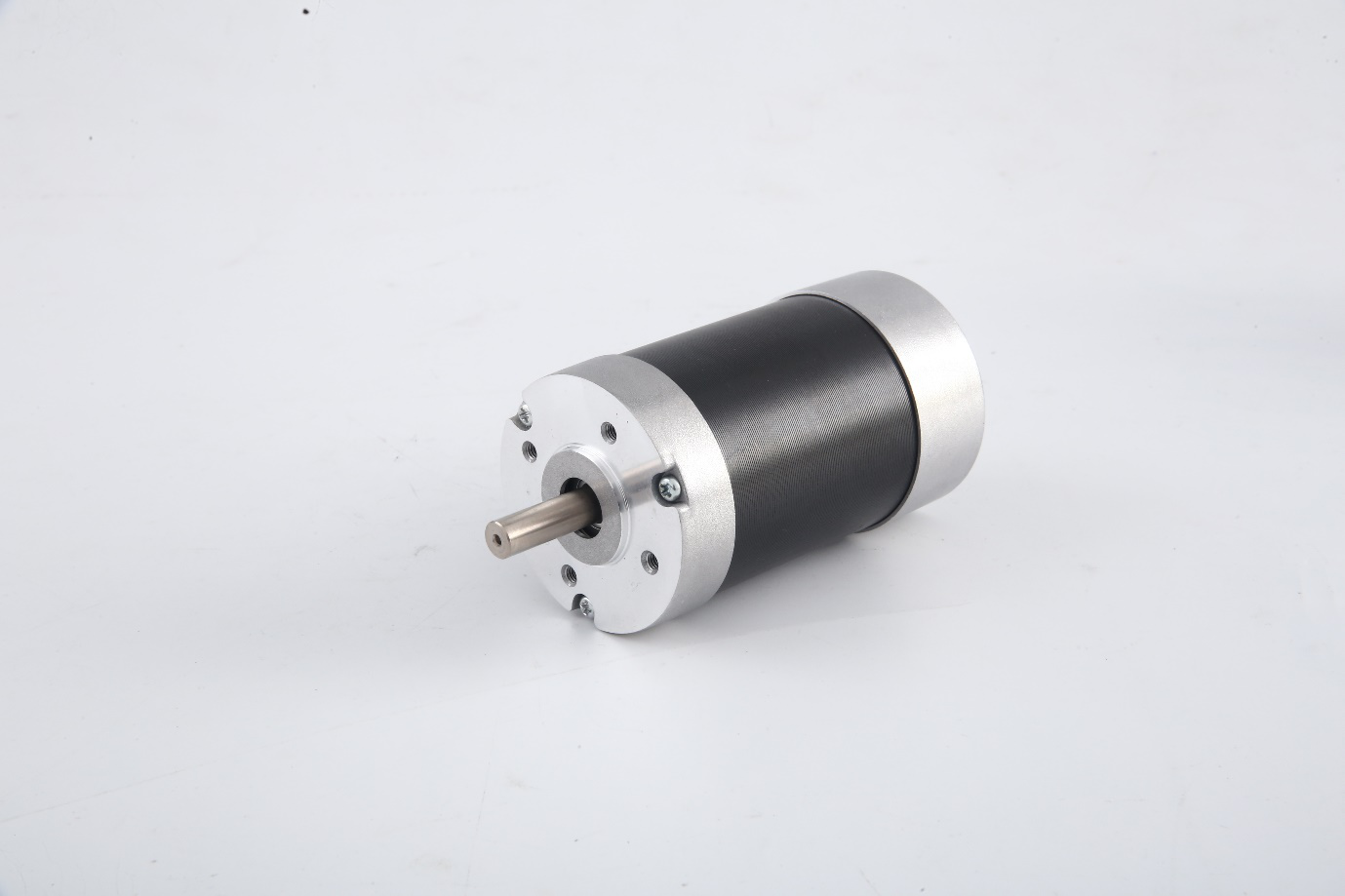

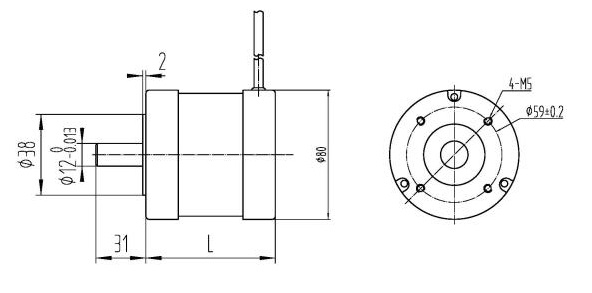

BLDC Motor 80R Series

Technical parameters
Winding wiring method: Y connection
Hall distribution angle: 120 degree electrical angle
Runout : 0.025mm
Insulation Class: B
Dielectric Strength: 500VDC for
Operating environment: -10°C--40°C
It can be specially designed for voltage, performance, mouth size and rotating shaft, and can be equipped with encoders, drivers, brakes, gearboxes and other devices.

Performance parameter

Model	voltage	No-load speed	No-load current	Rated torque	Rated speed	Current rating	power
8020	36	4000	0.8	0.5	3000	4.2	150
8040	36	4000	1	1	3000	8.3	300
8060	36	4000	1.3	1.4	3000	12.3	450

Remarks
1.The shaft can be customized, with a diameter range of 8-15mm
2.The voltage speed can be customized according to the requirements
3.It can be equipped with various types of reducer, and can be equipped with all kinds of brakes/encoders/synchronous wheels, etc

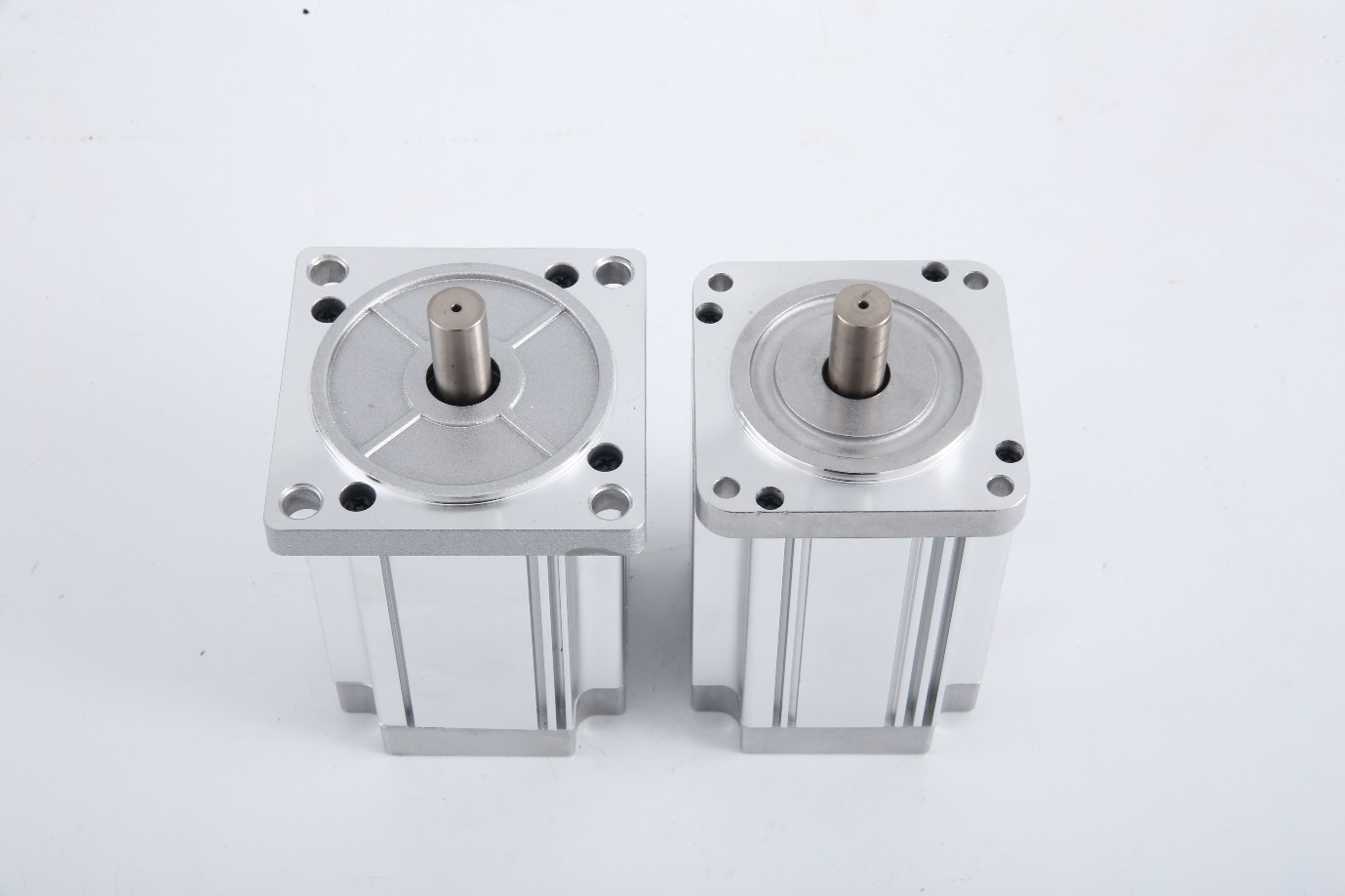

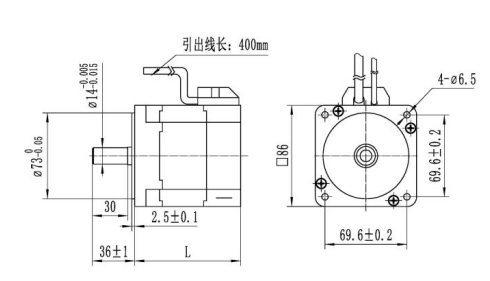

BLDC Motor 86 Series

Technical parameters
Winding wiring method: Y connection
Hall distribution angle: 120 degree electrical angle
Runout : 0.025mm
Insulation Class: B
Dielectric Strength: 500VDC for
Operating environment: -10°C--40°C
It can be specially designed for voltage, performance, mouth size and rotating shaft, and can be equipped with encoders, drivers, brakes, gearboxes and other devices.

Performance parameter

Model	voltage	No-load speed	No-load current	Rated torque	Rated speed	Current rating	power	Length
8620	48	3500	0.6	0.7	3000	55.5	210	70
8630	48	3500	0.8	1.1	3000	9.2	250	80
8640	48	3500	0.9	1.5	3000	12	460	90
8655	48	3500	1.1	1.9	3000	15	580	105
8680	48	3500	1.6	2.5	3000	19.5	750	130

Remarks
1.The shaft can be customized, with a diameter range of 8-15mm
2.The voltage speed can be customized according to the requirements
3.It can be equipped with various types of reducer, and can be equipped with all kinds of brakes/encoders/synchronous wheels, etc

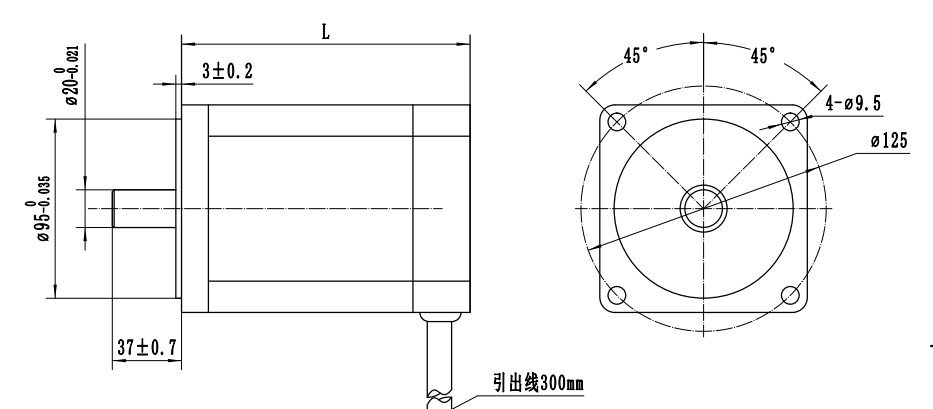

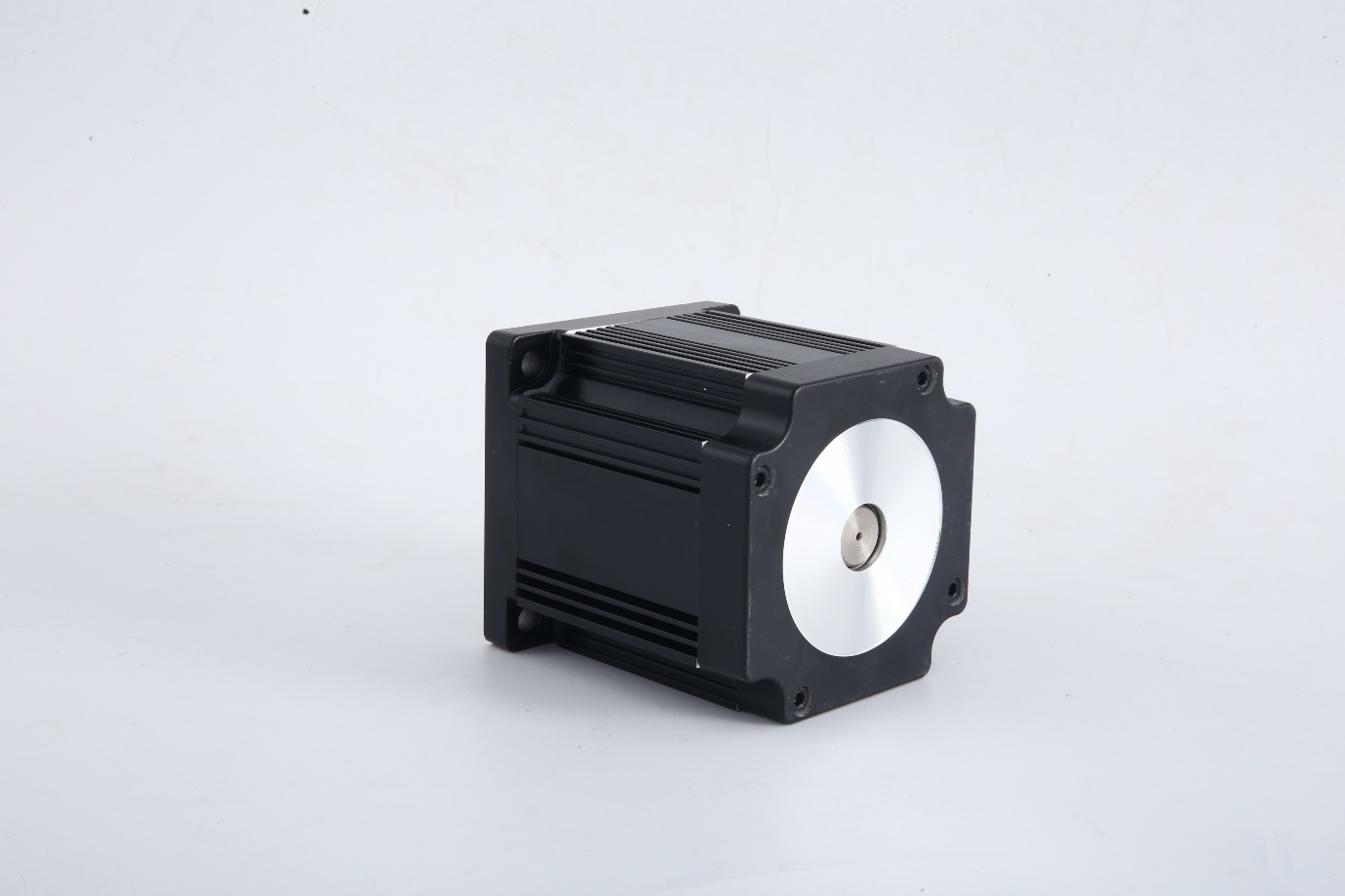

BLDC Motor 110 Series

Technical parameters
Winding wiring method: Y connection
Hall distribution angle: 120 degree electrical angle
Runout : 0.025mm
Insulation Class: B
Dielectric Strength: 500VDC for
Operating environment: -10°C--40°C
It can be specially designed for voltage, performance, mouth size and rotating shaft, and can be equipped with encoders, drivers, brakes, gearboxes and other devices.

Performance parameter

Model	voltage	No-load speed	No-load current	Rated torque	Rated speed	Current rating	power
11030	48	3500	0.8	1.7	3000	13	550
11060	48	3500	1.3	3.3	3000	26	1000
11090	48	3500	2.5	5	3000	39	1500
110120	48	3500	3	6.6	3000	52	2000

Remarks
1.The shaft can be customized, with a diameter range of 8-15mm
2.The voltage speed can be customized according to the requirements
3.It can be equipped with various types of reducer, and can be equipped with all kinds of brakes/encoders/synchronous wheels, etc

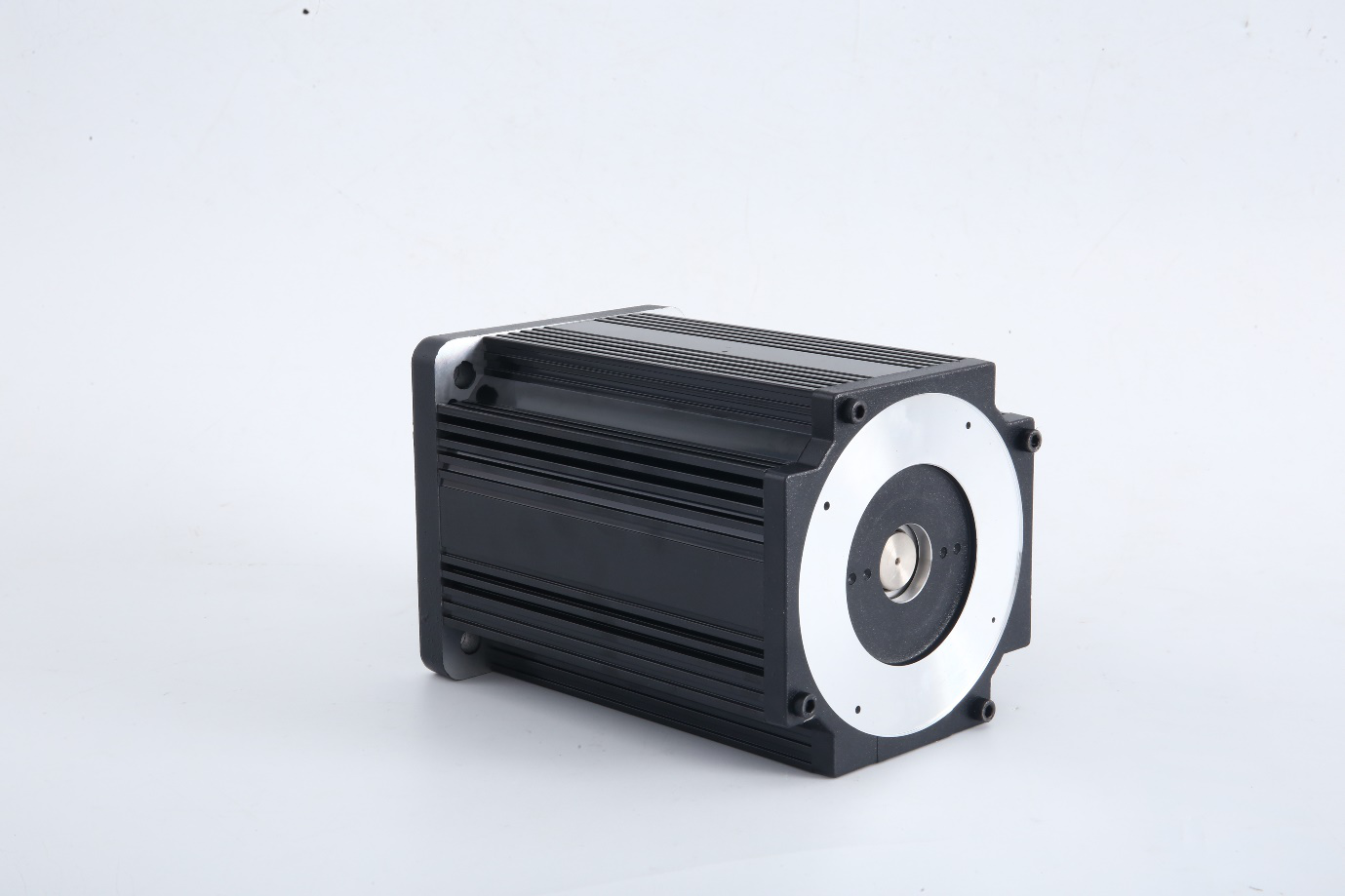

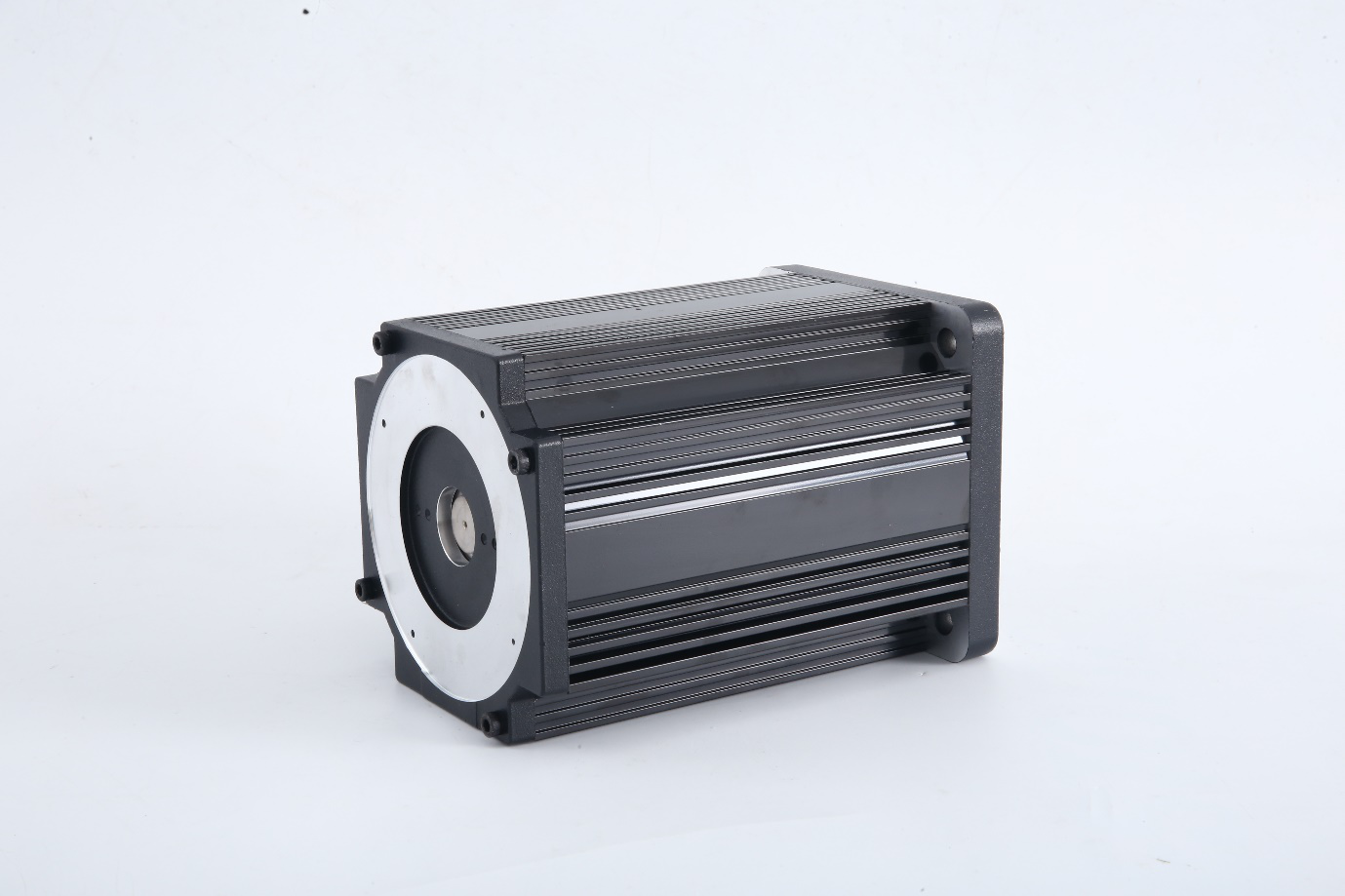

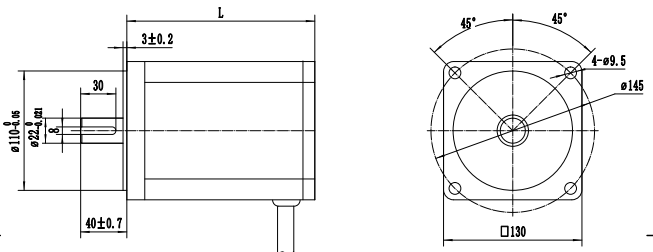

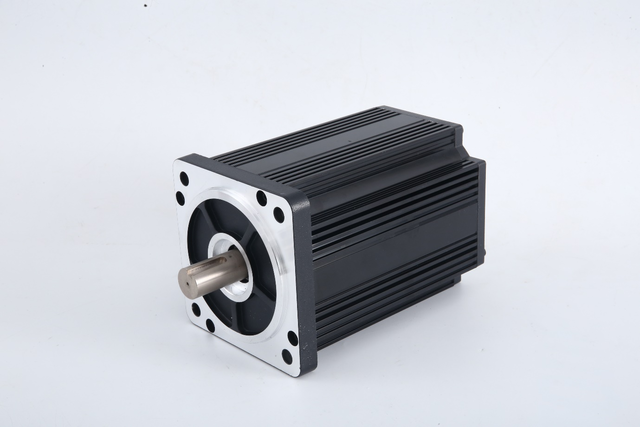

BLDC Motor 130 Series

Technical parameters
Winding wiring method: Y connection
Hall distribution angle: 120 degree electrical angle
Runout : 0.025mm
Insulation Class: B
Dielectric Strength: 500VDC for
Operating environment: -10°C--40°C
It can be specially designed for voltage, performance, mouth size and rotating shaft, and can be equipped with encoders, drivers, brakes, gearboxes and other devices.

Performance parameter

Model	voltage	No-load speed	No-load current	Rated torque	Rated speed	Current rating	power
13095	72	3500	3	9.5	3000	52	3000
130142	72	3500	5	14.5	3000	78	4500
