Hybrid Stepper Motor Series
20、28、35、39mm 1.8° hybrid stepper motor
42mm 1.8° hybrid stepper motor
57\60\86mm 1.8° hybrid stepper motor
110mm 1.8° hybrid stepper motor
Outer diameter 20、28、35、39mm 1.8° hybrid stepper motor
Technique Specification

Item

Specifications

Step Angle

1.8。

Step Angle Accuracy

±5% (full Step，no load)

Resistance Accuracy

±10%

Inductance Accuracy

±20%

Temperature Rise

80。C Max.(rated current，2 phase on)

Ambient Temperature

-20。C~+50。C

Insulation Resistance

100MΩMin. ,500VDC

Dielectric Strength

500VAC for one minute

Shaft Radial Play

0.02Max. (450 g-load)

Shaft Axial Play

0.08Max. (450 g-load)

Insulation Class

B

Electrical Specifications
Model Lead Wir（No.） Length mm Current A/phase Resistance Ω/phase Inductance mH/phase > Max Static Torque N.cm Rotor Inertia KG.cm² Weight KG
20SH32-1A 4 30 0.5 4.8 1.3 0.18 2.5 0.05
20SH42-1A 4 42 0.5 7.5 2.4 0.25 4.5 0.09
28SH33-1A 4 33 0.8 5.3 3.3 0.6 8 0.11
28SH45-1A 4 45 0.8 7.8 5.4 0.8 11 0.14
28SH48-1A 4 48 0.8 8.6 6.7 0.9 13 0.18
35SH20-1A 4 20 0.4 22 16 5 9 0.09
35SH26-1A 4 26 0.8 4.2 4.5 10 10 0.11
35SH28-1A 4 28 0.8 5 5 12 11 0.12
35SH28-2A 6 28 0.4 30 11 9 11 0.12
35SH34-1A 4 34 0.8 6.5 9.8 18 13 0.16
35SH34-1A 6 34 0.4 30 22 12 22 0.16
39SH20-1A 4 20 0.42 18 12 8 12 0.10
39SH26-1A 4 26 0.6 9 10 14 14 0.12
39SH34-1A 4 34 1.2 3.2 3 16 19 0.16
39SH34-2A 6 34 0.4 30 14 12 19 0.16
39SH40-1A 4 40 0.6 12 20 18 24 0.21
39SH40-2A 4 40 1.2 3.8 6.5 24 24 0.21

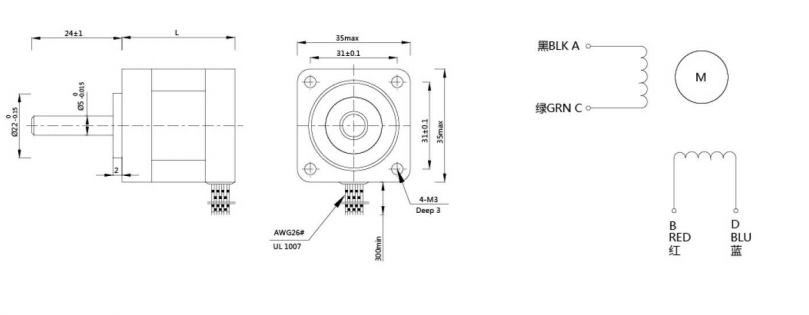

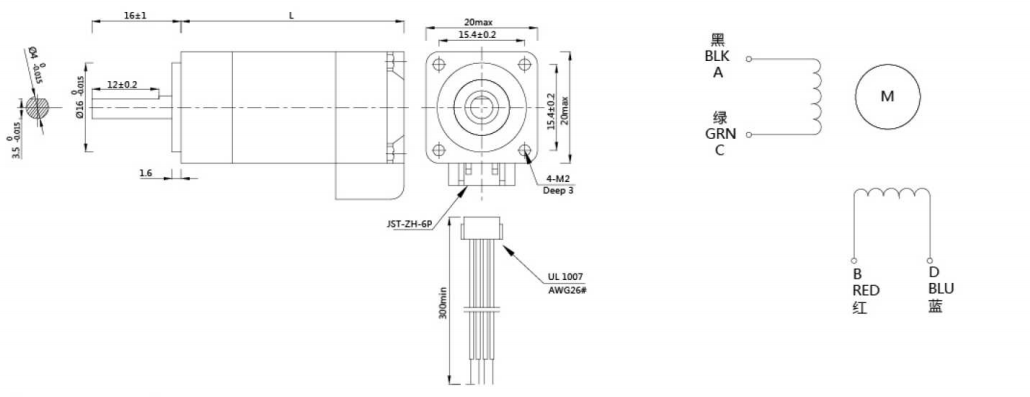

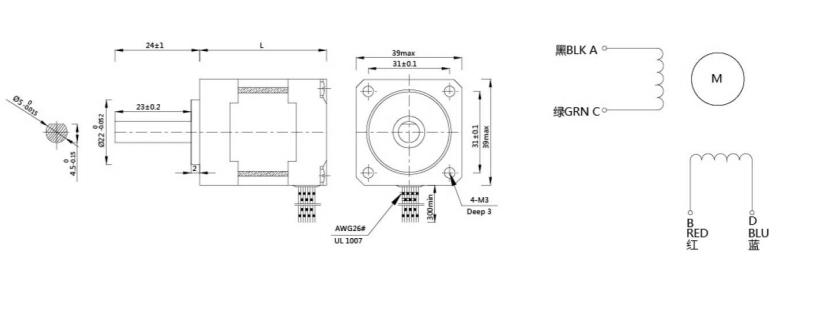

Wiring Diagram

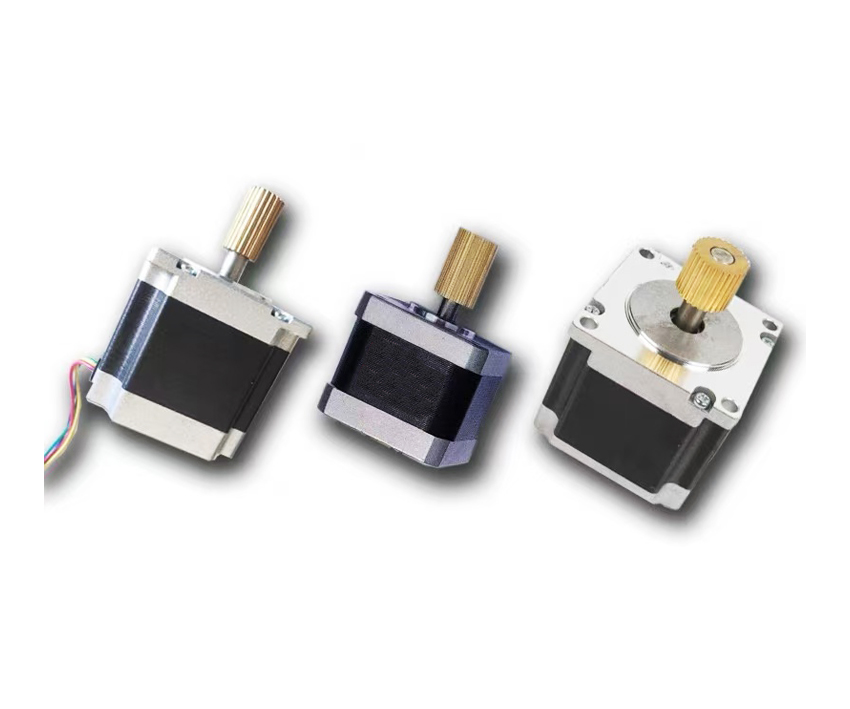

Outer diameter 42mm 1.8° hybrid stepper motor
Technical parameters

Item

Specifications

Step Angle

1.8。

Step Angle Accuracy

±5% (full Step，no load)

Resistance Accuracy

±10%

Inductance Accuracy

±20%

Temperature Rise

80。C Max.(rated current，2 phase on)

Ambient Temperature

-20。C~+50。C

Insulation Resistance

100MΩMin. ,500VDC

Dielectric Strength

500VAC for one minute

Shaft Radial Play

0.02Max. (450 g-load)

Shaft Axial Play

0.08Max. (450 g-load)

Insulation Class

B

Electrical Specifications

Model

Lead Wir（No.）

Length
mm

Current
A/phase

Resistance
Ω/phase

Inductance
mH/phase

Max Static Torque
N.cm

Rotor Inertia
KG.cm²

Weight
KG

42SH003

34

1.3

2.4

2.8

28

34

4

0.22

42SH107

40

1.3

2.5

5.0

40

54

4

0.28

42SH107

40

1.7

1.5

2.8

42

54

4

0.28

42SH205

48

1.3

3.2

5.5

52

68

4

0.35

42SH205

48

1.7

1.8

3.2

54

68

4

0.35

42SH308

60

1.7

2.3

4.6

70

80

4

0.48

42SH308

60

2.3

1.4

2.5

72

80

4

0.48

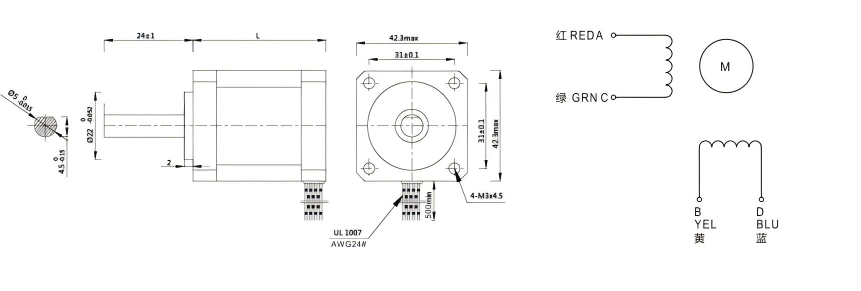

Wiring Diagram

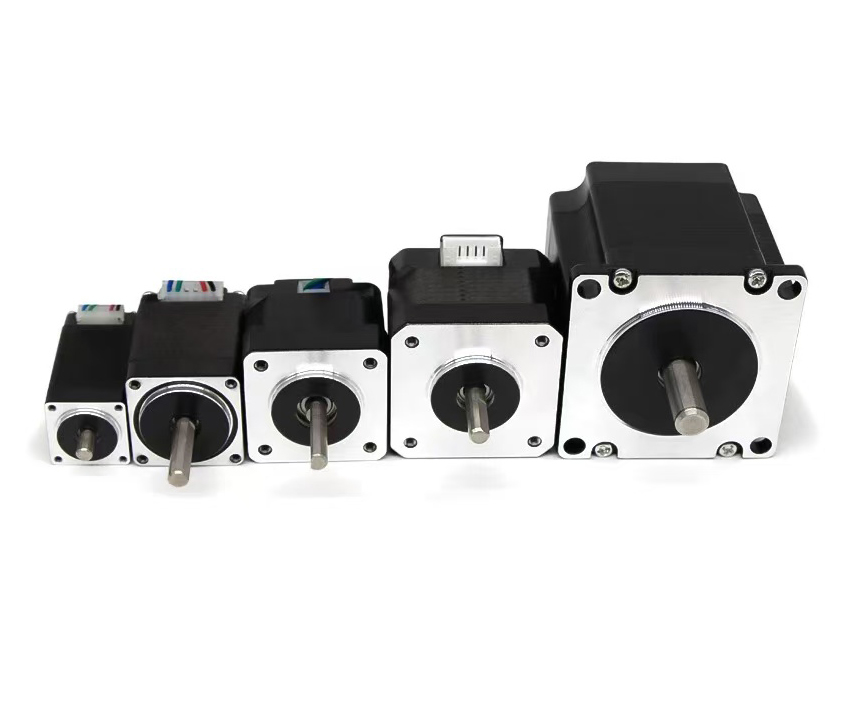

Outer diameter 57\60\86mm 1.8° hybrid stepper motor
Technical parameters

Item

Specifications

Step Angle

1.8。

Step Angle Accuracy

±5% (full Step，no load)

Resistance Accuracy

±10%

Inductance Accuracy

±20%

Temperature Rise

80。C Max.(rated current，2 phase on)

Ambient Temperature

-20。C~+50。C

Insulation Resistance

100MΩMin. ,500VDC

Dielectric Strength

500VAC for one minute

Shaft Radial Play

0.02Max. (450 g-load)

Shaft Axial Play

0.08Max. (450 g-load)

Insulation Class

B

Electrical Specifications

Model

Lead Wir（No.）

Length
mm

Current
A/phase

Resistance
Ω/phase

Inductance
mH/phase

Max Static Torque
N.cm

Rotor Inertia
KG.cm²

Weight
KG

57SH200

56

1.5

3.2

5.5

0.9

280

4

0.59

57SH200

56

3.0

1.1

3

1.2

280

4

0.68

57SH260

69

3.0

2.3

7.2

1.5

350

4

0.88

57SH300

76

4.0

0.35

2.4

1.7

440

4

1.05

57SH330

84

4.0

0.7

2.7

2.0

530

4

1.13

57SH370

92

4.5

0.35

2.0

2.2

600

4

1.2

57SH400

100

4.5

0.4

2.0

2.5

680

4

1.5

57SH450

112

4.5

0.9

3.8

3.0

800

4

1.75

60SH370

92

4.0

0.8

3.5

2.4

780

4

1.4

60SH400

100

6.0

0.7

2.9

4.0

1200

4

1.65

60SH450

112

6.0

0.8

4.5

4.4

1350

4

1.85

86SH200

68

4.0

0.63

3.2

2.6

0.85

4

2

86SH260

75

6.0

0.38

3.5

4.5

1.05

4

2.5

86SH400

98

6.0

0.5

4.0

6.8

1.55

4

3.0

86SH450

114

6.0

0.6

6.8

8.5

1.8

4

3.5

86SH600

153

6.0

0.75

8.5

11

2.5

4

4.2

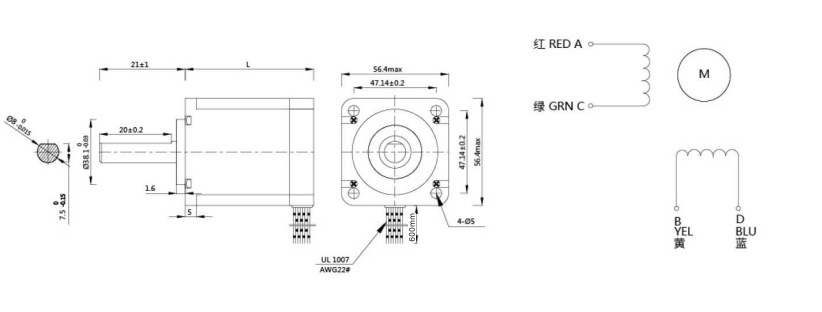

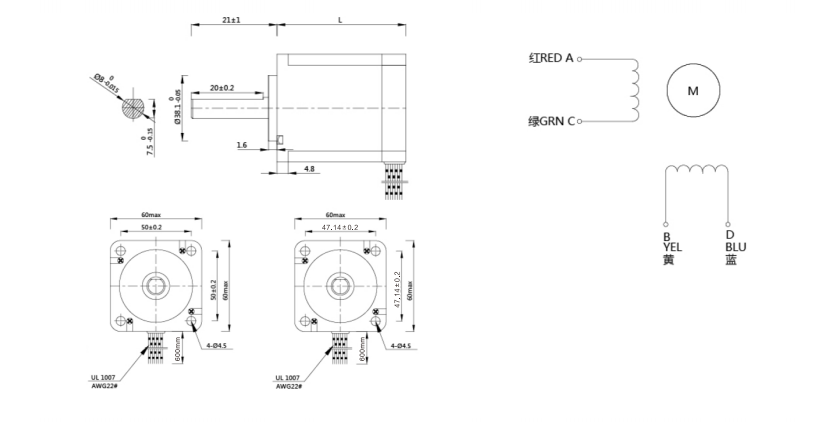

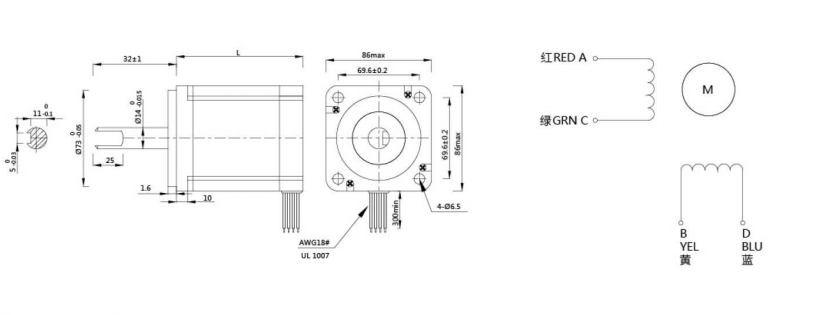

Wiring Diagram

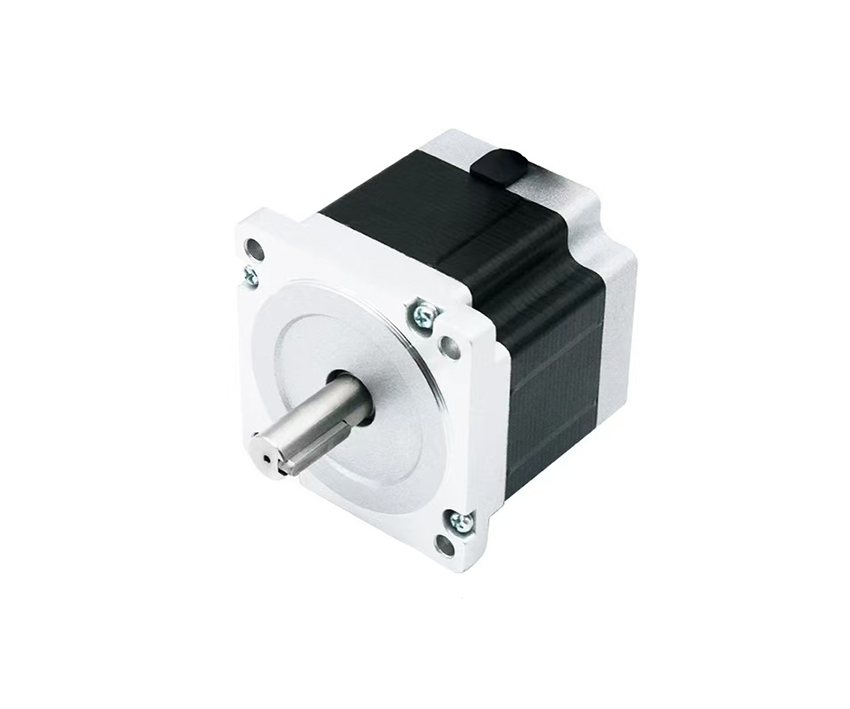

Outer diameter 110mm 1.8° hybrid stepper motor
Technical parameters

Item

Specifications

Step Angle

1.8。

Step Angle Accuracy

±5% (full Step，no load)

Resistance Accuracy

±10%

Inductance Accuracy

±20%

Temperature Rise

80。C Max.(rated current，2 phase on)

Ambient Temperature

-20。C~+50。C

Insulation Resistance

100MΩMin. ,500VDC

Dielectric Strength

500VAC for one minute

Shaft Radial Play

0.02Max. (450 g-load)

Shaft Axial Play

0.08Max. (450 g-load)

Insulation Class

B

Electrical Specifications

Model

Lead Wir（No.）

Length
mm

Current
A/phase

Resistance
Ω/phase

Inductance
mH/phase

Max Static Torque
N.cm

Rotor Inertia
KG.cm²

Weight
KG

110SH99-01A

4

99

5.5

0.9

12.0

11.0

5.5

5.00

110SH150-01A

4

150

6.8

0.8

15.0

21.0

10.9

8.40

110SH165-01A

4

165

6.0

0.8

14.0

24.0

12.5

9.50

110SH201-01A

4

201

8.0

0.7

12.0

28.0

16.2

11.70

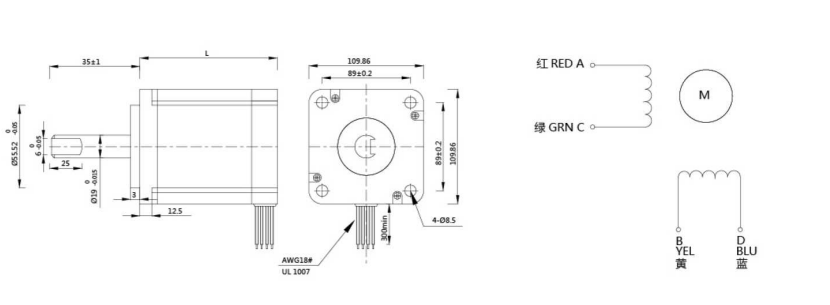

Wiring Diagram
